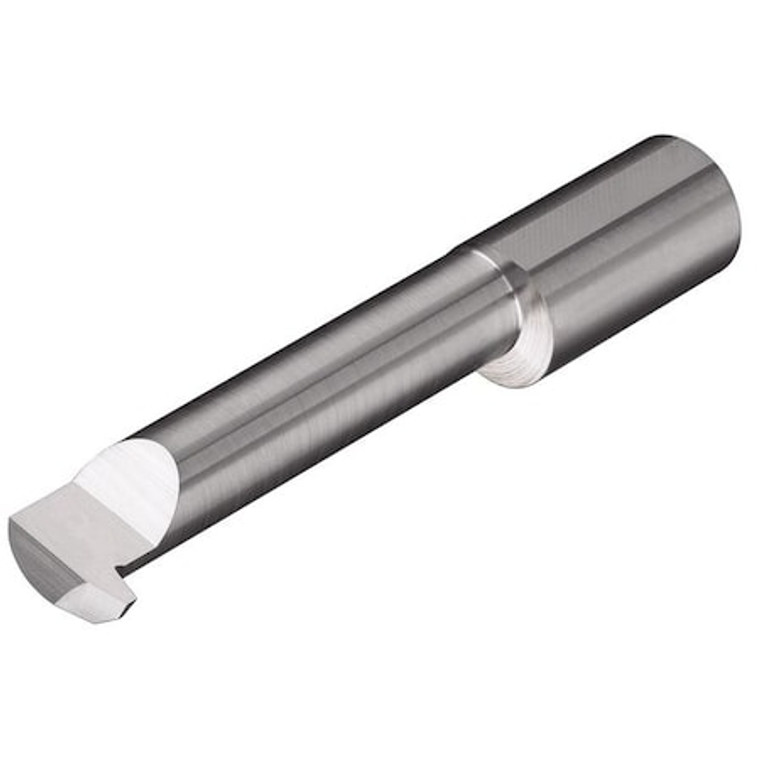

Threading Tool, 2-1/2 in L, Carbide - SAT-1000-12

Threading Tool, 2-1/2 in L, Carbide - SAT-1000-12

Micro 100
SKU:
SAT-1000-12
|
UPC:
728709175965
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 29 Degrees , Carbide, Bright (Uncoated), 0.1730 in, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Overall Length:
2-1/2 in
Shank Dia.:
3/8 in
Max. Depth:
1.000";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Stub ACME Threading Tool
Finish:
Uncoated
Hole Dia.:
.360";Projection=0.0850 in"
Min. Hole Dia.:
0.3600 in
Center to Cutting Tip:
0.1730 in
Max. Hole Depth:
1 in
Finish - Machining:
Bright (Uncoated)
Flat Width:
0.0330 in
Series:
SAT
Max. Threads per Inch:
12
Shank Type - Machining:
Straight with Three Flats
Measurement System:
Fractional Inch
Included Angle:
29 Degrees
Cutter Material:
Carbide
Offset Point:
0.0450 in
Cutting Application:
Threading
Thread Direction:
Right Hand
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Thread Standard:
Stub Acme
Split Length:
0.210";Neck Dia.=0.2700""
Max. Bore Depth:
1";Offset=0.051""
Min. Bore Dia.:
0.3600";Groove Width=0.0900""
Package Quantity:
1
