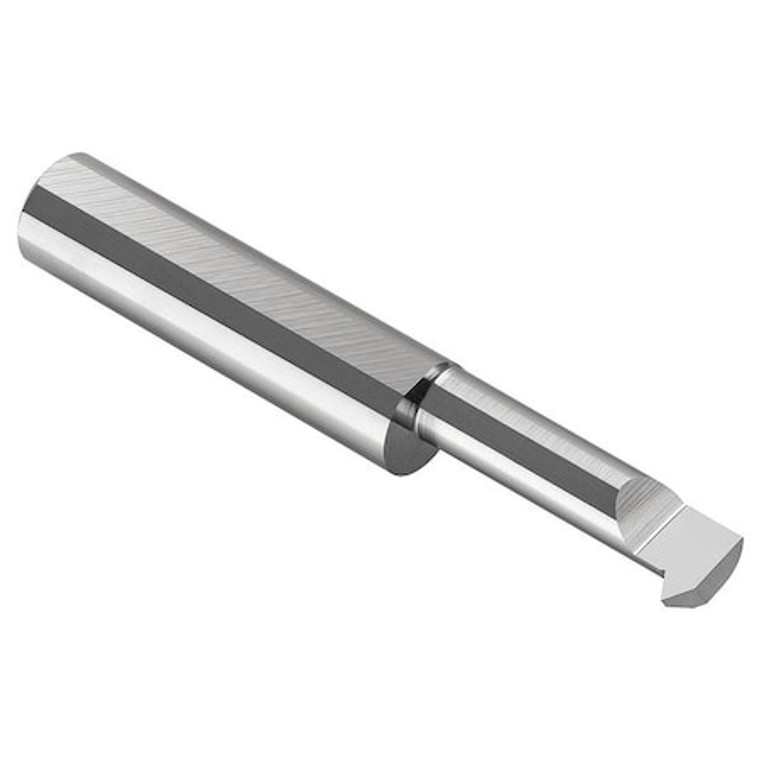

Threading Tool, 2-1/2 in L, Carbide - ITL-320750

Threading Tool, 2-1/2 in L, Carbide - ITL-320750

Micro 100
SKU:
ITL-320750
|
UPC:
728709139233
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, Bright (Uncoated), 0.1330 in, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
3/8 in
Overall Length:
2-1/2 in
Max. Depth:
0.750";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Internal Threading Tool
Hole Dia.:
.320";Finish=Uncoated"
Projection:
0.0750 in
Radius:
0.0020";Min. Hole Dia.=0.3200 in"
Shank Type - Machining:
Straight with Three Flats
Cutting Application:
Threading
Offset Point:
0.0430 in
Series:
ITL
Max. Threads per Inch:
32
Thread Standard:
ANSI, Metric 60 Degrees , UN
Max. Hole Depth:
3/4 in
Finish - Machining:
Bright (Uncoated)
Included Angle:
60 Degrees
Cutter Material:
Carbide
Features:
Corner Radius Profile, Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Thread Direction:
Left Hand
Min. Teeth per Inch:
10
Center to Cutting Tip:
0.1330 in
Measurement System:
Fractional Inch
Offset:
0.043";Thread Size=10-32"
Max. Bore Depth:
3/4";Neck Dia.=0.2400""
Min. Bore Dia.:
0.3200";Groove Width=0.0870""
Split Length:
0.210";Package Quantity=1"
