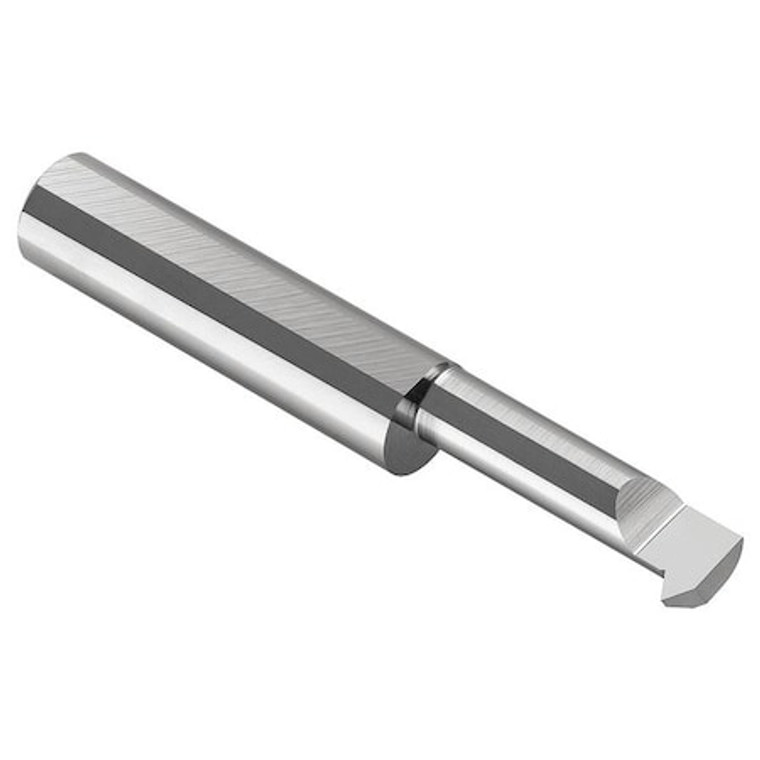

Threading Tool, 2-1/2 in L, Carbide - ITL-3201250

Threading Tool, 2-1/2 in L, Carbide - ITL-3201250

Micro 100
SKU:
ITL-3201250
|
UPC:
728709139196
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, Bright (Uncoated), 0.1330 in, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
3/8 in
Overall Length:
2-1/2 in
Cutting Direction:
Right Hand
Max. Depth:
1.250";Material=C2 Micrograin Carbide"
Shank Material:
Carbide
Style:
Internal Threading Tool
Projection:
0.0750 in
Hole Dia.:
.320";Finish=Uncoated"
Radius:
0.0020";Center to Cutting Tip=0.1330 in"
Min. Teeth per Inch:
10
Offset Point:
0.0430 in
Min. Hole Dia.:
0.3200 in
Shank Type - Machining:
Straight with Three Flats
Included Angle:
60 Degrees
Thread Standard:
ANSI, Metric 60 Degrees , UN
Features:
Corner Radius Profile, Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Series:
ITL
Finish - Machining:
Bright (Uncoated)
Max. Threads per Inch:
32
Max. Hole Depth:
1-1/4 in
Cutting Application:
Threading
Cutter Material:
Carbide
Measurement System:
Fractional Inch
Thread Direction:
Left Hand
Neck Dia.:
0.2400";Min. Bore Dia.=0.3200""
Split Length:
0.210";Groove Width=0.0870""
Offset:
0.043";Thread Size=10-32"
Max. Bore Depth:
1-1/4";Package Quantity=1"
