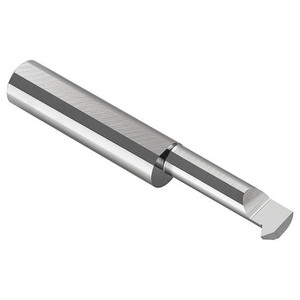

Threading Tool, 2-1/2 in L, Carbide - ITL-3201000

Threading Tool, 2-1/2 in L, Carbide - ITL-3201000

Micro 100
SKU:
ITL-3201000
|
UPC:
728709139172
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, Bright (Uncoated), 0.1330 in, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
3/8 in
Overall Length:
2-1/2 in
Max. Depth:
1.000";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Internal Threading Tool
Projection:
0.0750 in
Finish:
Uncoated
Hole Dia.:
.320";Radius=0.0020""
Finish - Machining:
Bright (Uncoated)
Offset Point:
0.0430 in
Measurement System:
Fractional Inch
Cutter Material:
Carbide
Shank Type - Machining:
Straight with Three Flats
Thread Standard:
ANSI, Metric 60 Degrees , UN
Max. Hole Depth:
1 in
Included Angle:
60 Degrees
Max. Threads per Inch:
32
Center to Cutting Tip:
0.1330 in
Series:
ITL
Min. Teeth per Inch:
10
Min. Hole Dia.:
0.3200 in
Thread Direction:
Left Hand
Cutting Application:
Threading
Features:
Corner Radius Profile, Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Neck Dia.:
0.2400";Offset=0.043""
Thread Size:
10-32
Max. Bore Depth:
1";Min. Bore Dia.=0.3200""
Split Length:
0.210";Groove Width=0.0870""
Package Quantity:
1
