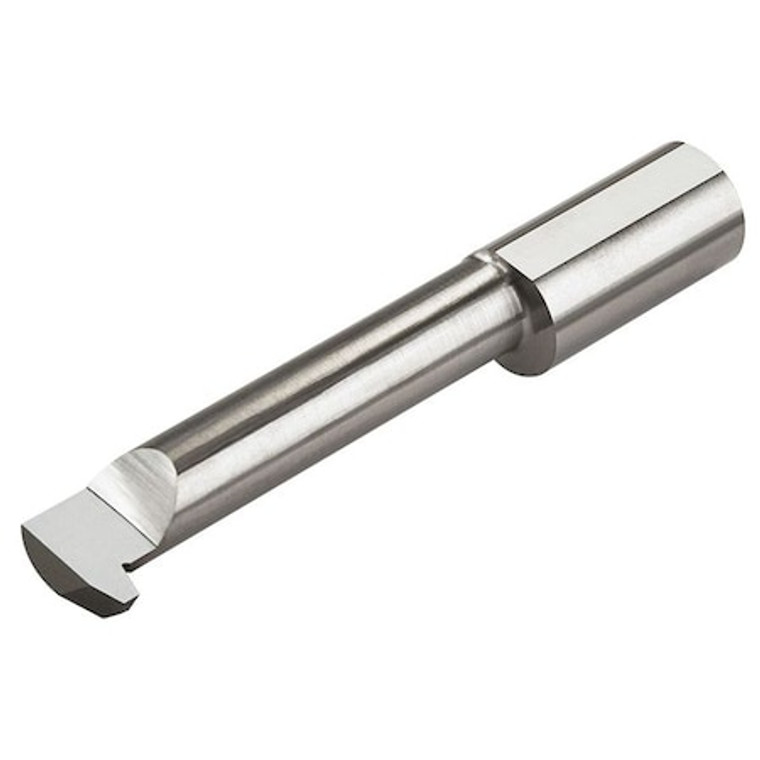

Threading Tool, 2-1/2 in L, Carbide - IAT-1000-12

Threading Tool, 2-1/2 in L, Carbide - IAT-1000-12

Micro 100
SKU:
IAT-1000-12
|
UPC:
728709136577
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 29 Degrees , Carbide, Bright (Uncoated), 0.1730 in, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Overall Length:
2-1/2 in
Shank Dia.:
3/8 in
Max. Depth:
1.000";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Internal ACME Threading Tool
Projection:
0.0850 in
Finish:
Uncoated
Hole Dia.:
.360";Max. Threads per Inch=12"
Included Angle:
29 Degrees
Cutter Material:
Carbide
Cutting Application:
Threading
Finish - Machining:
Bright (Uncoated)
Measurement System:
Fractional Inch
Min. Hole Dia.:
0.3600 in
Thread Standard:
ACME
Flat Width:
0.0280 in
Offset Point:
0.0360 in
Center to Cutting Tip:
0.1730 in
Series:
IAT
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Shank Type - Machining:
Straight with Three Flats
Max. Hole Depth:
1 in
Thread Direction:
Right Hand
Offset:
0.036";Groove Width=0.0720""
Max. Bore Depth:
1";Min. Bore Dia.=0.3600""
Neck Dia.:
0.2700";Split Length=0.210""
Package Quantity:
1
