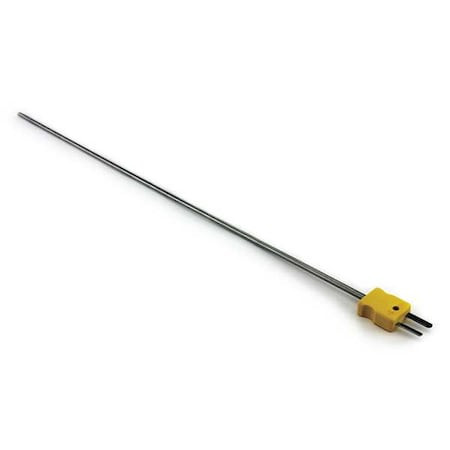

Thermocouple Probe, K, 12in, Inconel, 22 AWG - 36GK71

Thermocouple Probe, K, 12in, Inconel, 22 AWG - 36GK71

Dayton
SKU:
36GK71
|
UPC:
190735274316
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Thermocouple Probe, Type K, Grounded, For Application Air, Gas, Liquid, 1/4 in MNPT, 1/8 in MNPT, Mini Plug, Probe Size 1/8 in x 12 in, Cable Length 12 in, -325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C, Thermocouple
Additional Information
Country of Origin:
United States
Item:
Thermocouple Probe
Grounded / Ungrounded:
Grounded
Thermocouple Type:
Type K
Temp. Limit (Deg. F):
2,150
Thermocouple Element:
22 AWG
Probe Length:
12 in
Material:
Inconel 600
Plug or Connector Type:
Mini Plug
Standards:
ANSI
Construction:
Metal Insulated Cable
Error Accuracy (%):
(Over 293 Degrees C) +/-0.4
Insulation:
Magnesium Oxide
Max. Pressure (PSI):
1,000 psi
Sheath Size (In.):
0.125 in
Error Accuracy (Deg. C):
+/-1.1 Below 293 Degrees
Head Material:
Inconel
Head Connection:
1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT
Process Mounting:
1/4 in MNPT, 1/8 in MNPT
Probe Tip Diameter:
0.125 in
Minimum Temperature °C:
-200 Degrees C
Maximum Temperature °C:
1,250 Degrees C
Connector Type:
Mini Plug
Maximum Wire Gauge:
20 AWG
Cable Length:
12 in
For Air:
Yes
For Liquids and Gels:
Yes
Temperature Range:
-325 Degrees to 2,280 Degrees F/-200 Degrees to 1,250 Degrees C
Accuracy:
+/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C
For Solids:
No
Includes Thermowell:
No
Response Time:
0.5 sec
Tip Style:
Rounded
Probe Sheath Material:
Inconel
For Surfaces:
No
For Gases:
Yes
Minimum Temperature °F:
-325 Degrees F
Probe Diameter:
0.125 in
Cable Material:
Magnesium Oxide Insulation
For Application:
Air, Gas, Liquid
Junction Type:
Grounded
Fitting Type:
Compression
Sensor Type:
Thermocouple
Maximum Temperature °F:
2,280 Degrees F
Probe Size:
1/8 in x 12 in
Probe Bend:
Straight
Maximum Temperature °C:
1,250 Degrees C
Maximum Temperature °F:
2,280 Degrees F
Minimum Temperature °F:
-325 Degrees F
Minimum Temperature °C:
-200 Degrees C
Package Quantity:
1
