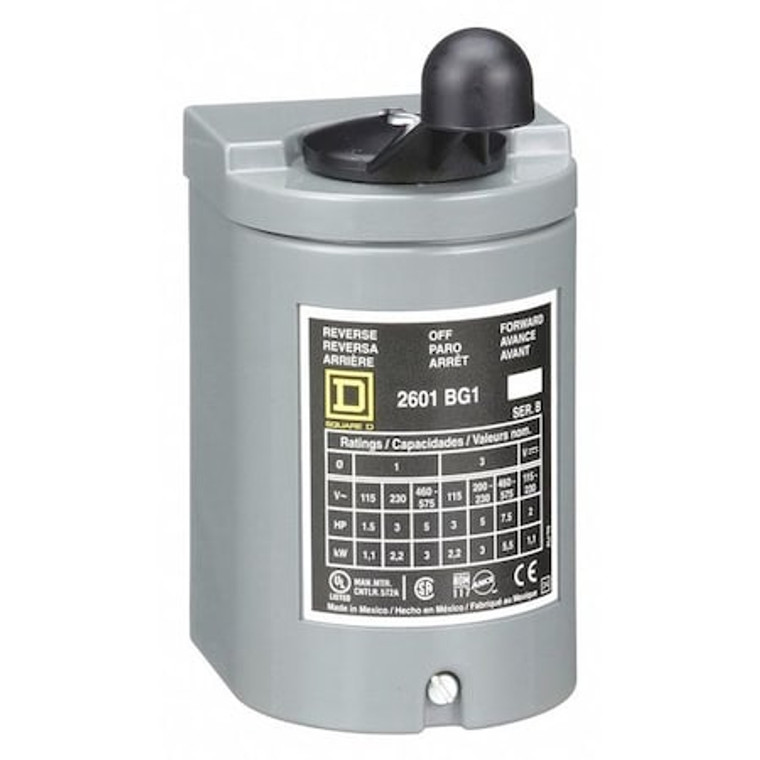

Switch, Drum Reversing, Plastic Handle - 2601BG1
Square DLog in for pricing
(No reviews yet)
Write a Review
Square D
Switch, Drum Reversing, Plastic Handle - 2601BG1
Drum Switch, Switch Action Maintained, Momentary, Phase Single, Reversing Capability Reversing, Horsepower @ Three Phase - 240V AC 5 hp, Horsepower @ Three Phase - 480V AC 7 1/2 hp, Maximum Voltage Rating 250V DC, 600V AC, Terminal Connection Type Screw Clamp Terminals, Horsepower @ Single Phase - 120V AC 1 1/2 hp, NEMA Enclosure Rating 1, Number of Poles 3, Horsepower @ Single Phase - 240V AC 3 hp, Standards CSA Cetrified, UL Listed, Overall Width 2.68 in, Overall Depth 4.61 in
- Country of Origin:
- Mexico
- NEMA Rating:
- 1
- Depth:
- 6.6 in
- Handle Material:
- Plastic
- Height:
- 4.9 in
- HP @ 1 Phase - 240V:
- 3 hp
- Width:
- 3.3 in
- Item:
- Drum Switch
- Number of Poles:
- 3
- HP @ 1 Phase - 115V:
- 1 1/2 hp
- HP @ 3 Phase - 460V:
- 7 1/2 hp
- HP @ 115VDC:
- 2 hp
- HP @ 3 Phase - 240V:
- 5 hp
- HP @ 230VDC:
- 2 hp
- Action:
- Maintained/Momentary Reversing
- Standards:
- CSA Cetrified, UL Listed
- HP @ 3 Phase - 460-575V:
- 7 1/2 hp
- Type:
- B
- NEMA Enclosure Rating:
- 1
- Terminal Connection Type:
- Screw Clamp Terminals
- Switch Action:
- Maintained, Momentary
- Overall Width:
- 2.68 in
- Horsepower @ Three Phase - 480V AC:
- 7 1/2 hp
- Horsepower @ 230V DC:
- 2 hp
- Phase:
- Single
- Maximum Voltage Rating:
- 250V DC, 600V AC
- Horsepower @ Single Phase - 120V AC:
- 1 1/2 hp
- Reversing Capability:
- Reversing
- Horsepower @ Three Phase - 240V AC:
- 5 hp
- Overall Depth:
- 4.61 in
- Horsepower @ 115V DC:
- 2 hp
- Horsepower @ Single Phase - 240V AC:
- 3 hp
- Overall Height:
- 5.38 in
- Horsepower:
- 1.5 hp 115 V AC, 1 phase; 3 hp 230 V AC, 1 phase; 5 hp 460 V AC, 1 phase; 5 hp 575 V AC, 1 phase; 5 hp 200 V AC, 3 phase; 5 hp 230 V AC, 3 phase; 7.5 hp 460 V AC, 3 phase; 7.5 hp 575 V AC, 3 phase; 2 hp 115 V DC; 2 hp 230 V DC
- Electrical Connection:
- Screw-clamp terminals
- Certifications:
- UL Listed; CSA
- Enclosure Rating:
- NEMA 1
- Maximum Rated Voltage:
- 600 V AC; 250 V DC
- Package Quantity:
- 1
