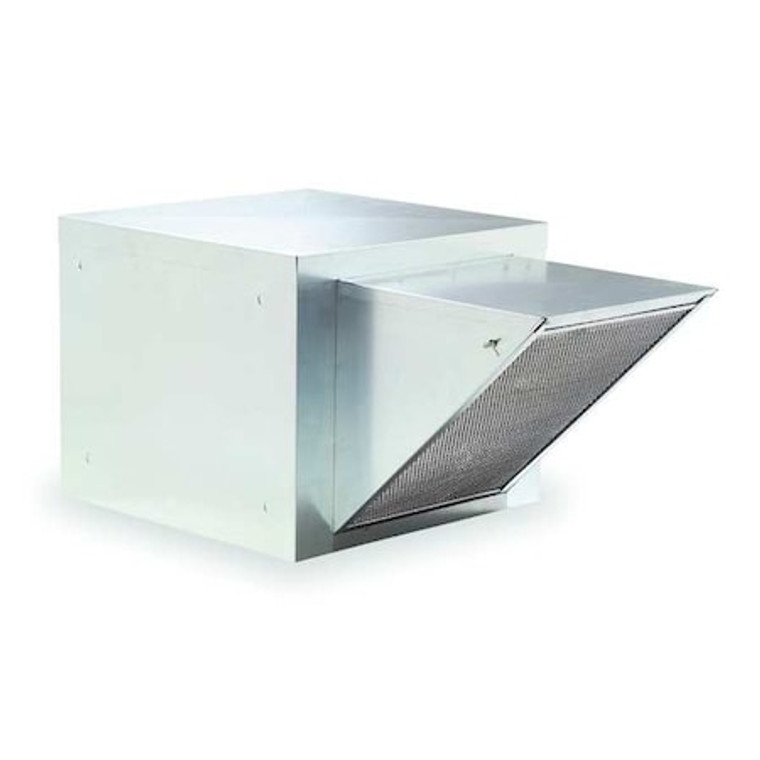

Supply Vent, 20 1/2 In - 5AU57

Supply Vent, 20 1/2 In - 5AU57

Dayton
SKU:
5AU57
|
UPC:
190735342091
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Roof Supply Fan, Mounting Location Roof, Wheel Diameter 20 1/2 in, Base Diameter Not Applicable, Base Length 46 in, Base Shape Square, Base Width 46 in, Maximum Airflow 14,948 cfm, Minimum Airflow 5,202 cfm, Maximum Motor Horsepower 10 hp, Minimum Motor Horsepower 5 hp, Minimum Motor Speed 642 RPM, Maximum Motor Speed 804 RPM, Maximum Static Pressure 2 in wc, Number of Filters 2, Filter Housing Depth 36 in, Filter Housing Height 43 3/4 in, Filter Housing Width 41 1/8 in
Additional Information
Country of Origin:
United States
Item - Roof Ventilators:
Filtered Supply Ventilator
Drive Type - Roof Ventilators:
Belt Drive
Drive Package With Motor Included:
No
Wheel Dia. (In.):
20 1/2 in
Base Size - Roof Ventilators:
46 in x 46 in
Filter Width (In.):
40 5/8 in
Type:
Centrifugal Belt Drive Less Drive Package
Housing Height (In.):
48 in
Discharge Width (In.):
23 in
Base Height (In.):
1 1/2 in
Max. Inlet Temp. (Deg. F):
120 Degrees F
Filter Area (Square-Ft.):
7 3/4 sq ft
Dimension E (In.):
2
Dimension B:
48 in
Base Square Size - Roof Ventilators:
46 x 46""
Base Length (In.):
46
Item:
Centrifugal Roof Supply Fan
Housing Width (In.):
84 in
Recommended 8 In. Fixed Curb Item No.:
4HX44
Shaft Dia. Sheave End (In.):
1 7/16 in
Adj. 12 3/8H Roof Curb Stock No.:
2ZV85"
Housing Length (In.):
46 in
Dimension F:
2 in
Wheel Type:
Forward Curved
Includes:
Washable Aluminum Filters
Drive Package Included:
No
Wheel Material:
Steel
Motor HP Range:
5 to 10
Dimension A:
46 in
Requires:
Roof curb for new installations
Recommended 12 In. Fixed Curb Item No.:
2RB82
Dimension C (In.):
43-3/4
Filter Housing Width (In.):
41 1/8 in
Filter Depth (In.):
7/8 in
Dimension A (In.):
46
Adj. 6 3/8H Roof Curb Stock No.:
3c597"
Dimension D:
36 in
Base Width (In.):
46
Discharge Length (In.):
25 3/8 in
Mounting Location:
Roof
Dimension C:
43 3/4 in
Filter Housing Depth (In.):
36 in
Dimension D (In.):
36
Dimension E:
2 in
Wheel Bore (In.):
1 7/16 in
Shaft Dia. Wheel End (In.):
1 7/16 in
Agency Compliance:
cUL Listed, UL Listed
RPM Range:
642 to 804
Filter Height (In.):
27 5/8 in
Dimension B (In.):
48
Drive Type:
Belt Drive
Filter Housing Height (In.):
43 3/4 in
Bearing Type:
Regreasable Pillow Block
Number of Filters Required:
2
Filter Material:
Aluminum
Dimension F (In.):
2
CFM Range:
10,400 to 14,600
Housing Material:
Steel
Overall Length:
46 in
Overall Width:
82 in
Features:
Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Neoprene Isolators Minimize Vibration and Noise
Standards:
AMCA Sound and Air, UL/cUL 705
Overall Height:
48 in
Application:
Commercial Kitchen, Institutional Buildings
Base Diameter:
Not Applicable
Housing Width:
82 in
Minimum Motor Horsepower:
5 hp
Minimum Motor Speed:
642 RPM
Minimum Airflow:
5,202 cfm
Hood Width:
84 in
Hood Length:
82 in
Number of Filters:
2
Base Height:
1.5 in
Base Width:
46 in
Overall Diameter:
82 in
Mounting Orientation:
Horizontal
Hood Height:
48 in
Filter Housing Width:
41 1/8 in
Filter Housing Depth:
36 in
Resistance Properties:
Spark Resistant
Filter Housing Height:
43 3/4 in
Base Length:
46 in
Maximum Static Pressure:
2 in wc
Electrical Connection:
Power Cord
Maximum Motor Speed:
804 RPM
Maximum Ambient Temperature:
120 Degrees F
Cutout Size:
25 3/8 in L x 23 in W
Housing Length:
46 in
Includes Drive Package:
No
Maximum Motor Horsepower:
10 hp
Cutout Length:
25.4 in
Housing Finish:
Galvanized
Assembly:
Unassembled
Brake Horsepower:
5 1/2 hp
Mount Type:
Roof Curb
Base Shape:
Square
Wheel Diameter:
20 1/2 in
Maximum Inlet Air Temperature:
120 Degrees F
Maximum Fan Speed:
804 RPM
Propeller Shaft Diameter:
1 1/2 in
Sound Level:
Fan RPM 642
Spark Resistant Construction Type:
A
Speed Controllable:
No
Includes Motor:
No
Motor Location:
Out of Airstream
Maximum Airflow:
14,948 cfm
Filter Area:
7 3/4 sq ft
Package Quantity:
1
