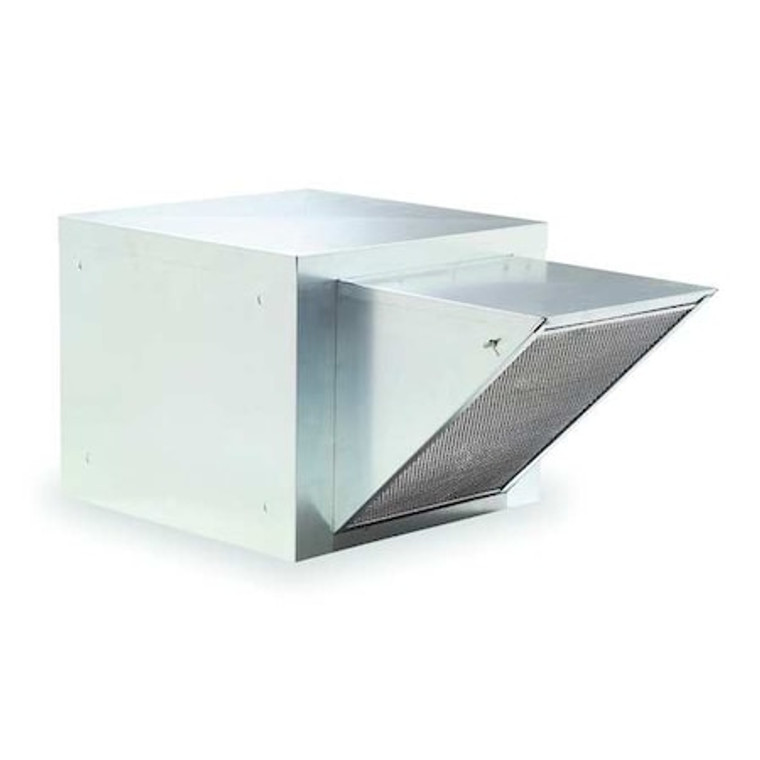

Supply Vent, 15 1/2 In - 4YC83

Supply Vent, 15 1/2 In - 4YC83

Dayton
SKU:
4YC83
|
UPC:
190735337776
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Roof Supply Fan, Mounting Location Roof, Wheel Diameter 15 1/2 in, Base Diameter Not Applicable, Base Length 34 1/2 in, Base Shape Square, Base Width 34 1/2 in, Maximum Airflow 5,284 cfm, Minimum Airflow 1,065 cfm, Maximum Motor Horsepower 2 hp, Minimum Motor Horsepower 1/2 hp, Minimum Motor Speed 535 RPM, Maximum Motor Speed 820 RPM, Maximum Static Pressure 1 in wc, Number of Filters 2, Filter Housing Depth 29 1/4 in, Filter Housing Height 27 1/2 in, Filter Housing Width 28 1/8 in
Additional Information
Country of Origin:
United States
Item - Roof Ventilators:
Filtered Supply Ventilator
Drive Type - Roof Ventilators:
Belt Drive
Drive Package With Motor Included:
No
Wheel Dia. (In.):
15 1/2 in
Base Size - Roof Ventilators:
32 1/2 in x 32 1/2 in
Recommended 8 In. Fixed Curb Item No.:
4HX42
Discharge Length (In.):
16 in
Dimension D:
29 1/4 in
Adj. 12 3/8H Roof Curb Stock No.:
2ZV84"
Motor HP Range:
3/4 to 2
Filter Material:
Aluminum
Recommended 12 In. Fixed Curb Item No.:
2RB80
Discharge Width (In.):
18 5/8 in
Includes:
Washable Aluminum Filters
Filter Area (Square-Ft.):
3 3/4 sq ft
Agency Compliance:
cUL Listed, UL Listed
Adj. 6 3/8H Roof Curb Stock No.:
4c455"
Filter Height (In.):
19 5/8 in
Drive Package Included:
No
Shaft Dia. Sheave End (In.):
1 in
Filter Housing Width (In.):
28 1/8 in
CFM Range:
3050 to 5050
Dimension F:
2 in
Dimension C:
27 1/2 in
Base Length (In.):
32-1/2
Filter Width (In.):
27 5/8 in
Filter Housing Depth (In.):
29 1/4 in
Dimension B:
32 in
Dimension E:
2 in
Housing Length (In.):
34 1/2 in
Shaft Dia. Wheel End (In.):
1 in
Dimension F (In.):
2
Filter Depth (In.):
7/8 in
Bearing Type:
Sealed Pillow Block
Dimension A (In.):
34-1/2
Base Square Size - Roof Ventilators:
32-1/2 x 32-1/2""
Housing Width (In.):
64 1/2 in
Wheel Bore (In.):
1 in
Requires:
Roof curb for new installations
Wheel Type:
Forward Curved
Item:
Centrifugal Roof Supply Fan
RPM Range:
535 to 820
Mounting Location:
Roof
Type:
Centrifugal Belt Drive Less Drive Package
Housing Material:
Steel
Dimension C (In.):
27-1/2
Base Height (In.):
1 1/2 in
Number of Filters Required:
2
Wheel Material:
Steel
Max. Inlet Temp. (Deg. F):
120 Degrees F
Dimension B (In.):
32
Drive Type:
Belt Drive
Dimension E (In.):
2
Dimension D (In.):
29-1/4
Base Width (In.):
32-1/2
Housing Height (In.):
32 in
Filter Housing Height (In.):
27 1/2 in
Dimension A:
34 1/2 in
Overall Width:
63 3/4 in
Standards:
AMCA Sound and Air, UL/cUL 705
Overall Length:
34 1/2 in
Application:
Commercial Kitchen, Institutional Buildings
Features:
Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Neoprene Isolators Minimize Vibration and Noise
Overall Height:
32 in
Speed Controllable:
No
Wheel Diameter:
15 1/2 in
Maximum Inlet Air Temperature:
120 Degrees F
Cutout Length:
16 in
Housing Finish:
Galvanized
Housing Width:
63.8 in
Includes Motor:
No
Housing Length:
34.5 in
Maximum Motor Horsepower:
2 hp
Base Length:
34 1/2 in
Maximum Motor Speed:
820 RPM
Mount Type:
Roof Curb
Assembly:
Unassembled
Minimum Motor Horsepower:
1/2 hp
Motor Location:
Out of Airstream
Base Shape:
Square
Sound Level:
Fan RPM 535
Base Diameter:
Not Applicable
Hood Height:
32 in
Maximum Airflow:
5,284 cfm
Spark Resistant Construction Type:
A
Maximum Fan Speed:
820 RPM
Cutout Size:
16 in L x 18 5/8 in W
Electrical Connection:
Power Cord
Includes Drive Package:
No
Number of Filters:
2
Mounting Orientation:
Horizontal
Base Width:
34 1/2 in
Maximum Ambient Temperature:
120 Degrees F
Filter Housing Width:
28 1/8 in
Filter Area:
3 3/4 sq ft
Resistance Properties:
Spark Resistant
Filter Housing Height:
27 1/2 in
Filter Housing Depth:
29 1/4 in
Brake Horsepower:
35/64 hp
Hood Width:
64.5 in
Minimum Airflow:
1,065 cfm
Overall Diameter:
63 3/4 in
Propeller Shaft Diameter:
1 in
Maximum Static Pressure:
1 in wc
Minimum Motor Speed:
535 RPM
Hood Length:
63.8 in
Base Height:
1.5 in
Package Quantity:
1
