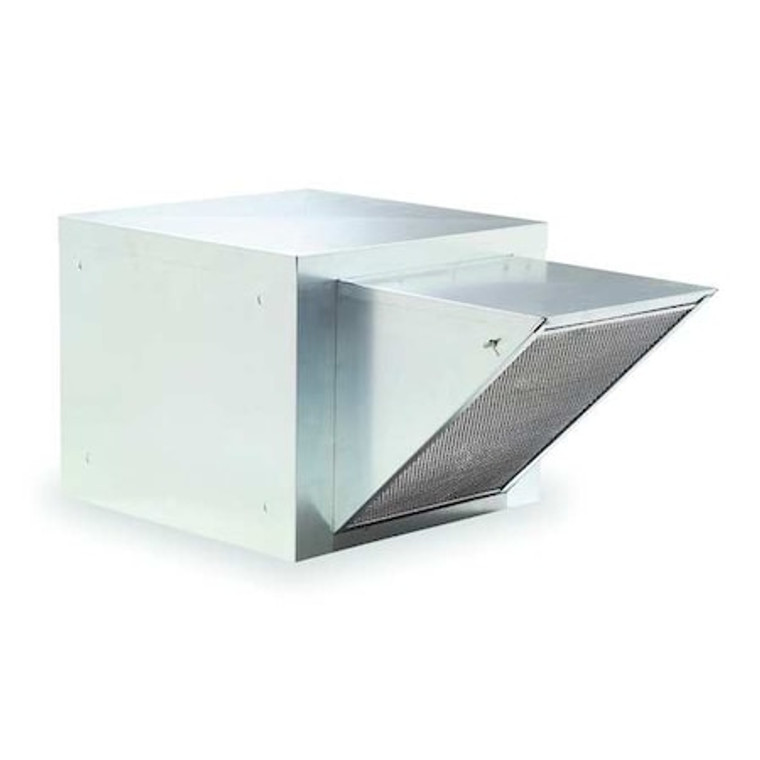

Supply Vent, 11 1/8 In - 4YC82

Supply Vent, 11 1/8 In - 4YC82

Dayton
SKU:
4YC82
|
UPC:
190735337769
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Roof Supply Fan, Mounting Location Roof and Wall, Wheel Diameter 11 1/8 in, Base Diameter Not Applicable, Base Length 30 in, Base Shape Square, Base Width 30 in, Maximum Airflow 3,092 cfm, Minimum Airflow 735 cfm, Maximum Motor Horsepower 1 hp, Minimum Motor Horsepower 11/64 hp, Minimum Motor Speed 415 RPM, Maximum Motor Speed 1,090 RPM, Maximum Static Pressure 1 in wc, Number of Filters 1, Filter Housing Depth 22 in, Filter Housing Height 21 1/4 in, Filter Housing Width 21 1/8 in
Additional Information
Country of Origin:
United States
Item - Roof Ventilators:
Filtered Supply Ventilator
Drive Type - Roof Ventilators:
Belt Drive
Drive Package With Motor Included:
No
Wheel Dia. (In.):
11 1/8 in
Base Size - Roof Ventilators:
28 1/2 in x 28 1/2 in
Filter Height (In.):
28 5/8 in
Drive Type:
Belt Drive
Includes:
Washable Aluminum Filters
Filter Width (In.):
20 5/8 in
Dimension B:
25 in
Filter Housing Depth (In.):
22 in
Filter Material:
Aluminum
Max. Inlet Temp. (Deg. F):
120 Degrees F
Discharge Width (In.):
13 3/8 in
Dimension B (In.):
25
Dimension D:
22 in
Shaft Dia. Wheel End (In.):
3/4 in
Number of Filters Required:
1
Drive Package Included:
No
Type:
Centrifugal Belt Drive Less Drive Package
Wheel Material:
Steel
Item:
Centrifugal Roof Supply Fan
Shaft Dia. Sheave End (In.):
3/4 in
Base Length (In.):
28-1/2
Motor HP Range:
1/6 to 1 1/2
RPM Range:
415 to 1090
Wheel Type:
Forward Curved
Dimension E:
1 1/2 in
Dimension C:
21 1/4 in
Filter Housing Height (In.):
21 1/4 in
Housing Material:
Steel
Wheel Bore (In.):
3/4 in
Dimension F (In.):
1-1/2
Adj. 12 3/8H Roof Curb Stock No.:
2ZV83"
Filter Area (Square-Ft.):
4 1/8 sq ft
Dimension D (In.):
22
Housing Height (In.):
25 in
Mounting Location:
Wall, Roof
Base Square Size - Roof Ventilators:
28-1/2 x 28-1/2""
Housing Length (In.):
30 in
Base Height (In.):
1 1/2 in
Base Width (In.):
28-1/2
Dimension A:
30 in
Discharge Length (In.):
11 3/8 in
Dimension A (In.):
30
Filter Depth (In.):
7/8 in
Dimension F:
1 1/2 in
Dimension E (In.):
1-1/2
Requires:
Roof curb for new installations
Adj. 6 3/8H Roof Curb Stock No.:
4c454"
Bearing Type:
Sealed Pillow Block
CFM Range:
700 to 2950
Dimension C (In.):
21-1/4
Recommended 12 In. Fixed Curb Item No.:
2RB79
Housing Width (In.):
52 in
Recommended 8 In. Fixed Curb Item No.:
4HX41
Agency Compliance:
cUL Listed, UL Listed
Filter Housing Width (In.):
21 1/8 in
Standards:
AMCA Sound and Air, UL/cUL 705
Overall Height:
25 in
Features:
Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Neoprene Isolators Minimize Vibration and Noise
Application:
Commercial Kitchen, Institutional Buildings
Overall Length:
30 in
Overall Width:
52 in
Includes Drive Package:
No
Housing Length:
30 in
Number of Filters:
1
Propeller Shaft Diameter:
3/4 in
Maximum Ambient Temperature:
120 Degrees F
Overall Diameter:
52 in
Mounting Orientation:
Horizontal
Cutout Length:
11.4 in
Assembly:
Unassembled
Base Width:
30 in
Filter Housing Width:
21 1/8 in
Maximum Fan Speed:
1,090 RPM
Minimum Motor Speed:
415 RPM
Hood Width:
52 in
Spark Resistant Construction Type:
A
Motor Location:
Out of Airstream
Resistance Properties:
Spark Resistant
Electrical Connection:
Power Cord
Maximum Static Pressure:
1 in wc
Filter Housing Height:
21 1/4 in
Maximum Inlet Air Temperature:
120 Degrees F
Brake Horsepower:
3/64 hp
Base Length:
30 in
Hood Length:
52 in
Speed Controllable:
No
Minimum Airflow:
735 cfm
Wheel Diameter:
11 1/8 in
Minimum Motor Horsepower:
11/64 hp
Filter Area:
4 1/8 sq ft
Filter Housing Depth:
22 in
Includes Motor:
No
Maximum Airflow:
3,092 cfm
Hood Height:
25 in
Base Height:
1.5 in
Housing Width:
52 in
Maximum Motor Speed:
1,090 RPM
Mount Type:
Roof Curb
Cutout Size:
11 3/8 in L x 13 3/8 in W
Maximum Motor Horsepower:
1 hp
Housing Finish:
Galvanized
Base Diameter:
Not Applicable
Base Shape:
Square
Sound Level:
Fan RPM 1090
Package Quantity:
1
