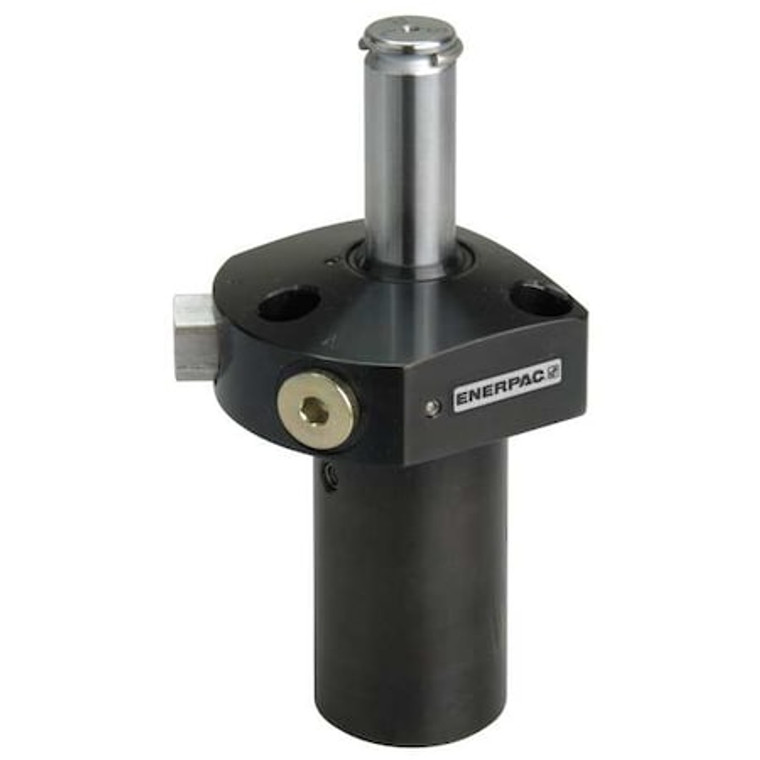

SULS51, 1100 lbs Force, Swing Clamp, Single-Acting, Left Turning, Upper Flange - SULS51

SULS51, 1100 lbs Force, Swing Clamp, Single-Acting, Left Turning, Upper Flange - SULS51

Enerpac
SKU:
SULS51
|
UPC:
662005231058
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Single Acting, Turns Left, Clamping Force 1,100 lbf, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series SU, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 0.59 sq in, Oil Capacity Clamped 0.25 cu in, Oil Capacity Unclamped 0.52 cu in, Max. Oil Flow 25 cu in/min, Pressure Range 500 to 5000 psi
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Swing Clamp Hydraulic Cylinder
Single Acting/Double Acting:
Single Acting
Clamping Force:
1,100 lbf
Total Stroke:
0.89 in
Clamping Stroke:
0.39 in
Effective Area Clamped:
0.28 sq in
Turns:
Left
Max. Pressure:
5,000 psi
Includes:
Mounting Bolts and Arm C-Clip
Oil Capacity Unclamped:
0.52 cu in
Max. Oil Flow:
25 cu in/min
Bolt Size:
1/4-28"
Oil Capacity Clamped:
0.25 cu in
Mounting Hole Dia.:
0.268 in
Body Style:
Upper Flange
Stroke:
0.89";Material of Construction=Steel"
Swing Angle:
90 Degrees
Type:
Swing
Outside Dia.:
1.37 in
Number of Bolts:
3
Effective Area Unclamped:
0.59 sq in
Function:
Single Acting
Pressure Range:
500 to 5000 psi
Port Size:
#4 SAE
Extended Height:
5.31 in
Min. Hole Depth:
0.75 in
For Use With:
CAS51
Cylinder Type:
Swing
Mounting Style:
Upper Flange
Series:
SU
Body Material:
Steel
Package Quantity:
1
