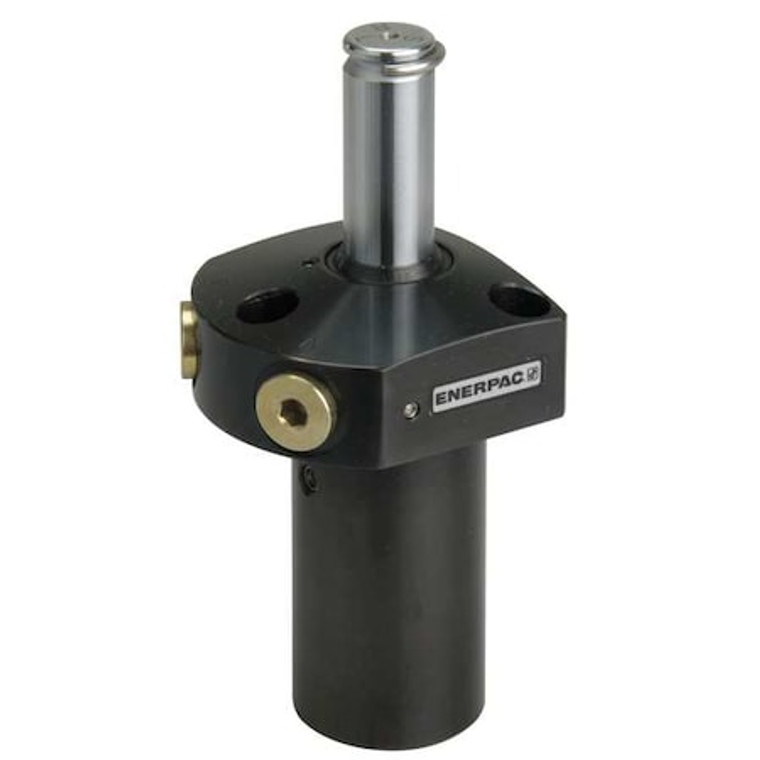

SULD51, 1250 lbs Force, Swing Clamp, Double-Acting, Left Turning, Upper Flange - SULD51

SULD51, 1250 lbs Force, Swing Clamp, Double-Acting, Left Turning, Upper Flange - SULD51

Enerpac
SKU:
SULD51
|
UPC:
662005231027
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Swing Clamp Hydraulic Cylinder, Swing, Body Material Steel, Mounting Style Upper Flange, Single Acting/Double Acting Double Acting, Turns Left, Clamping Force 1,250 lbf, Total Stroke 0.89 in, Effective Area Clamped 0.28 sq in, Clamping Stroke 0.39 in, Max. Pressure 5,000 psi, Series SU, Swing Angle 90 Degrees , Port Size #4 SAE, Effective Area Unclamped 0.59 sq in, Oil Capacity Clamped 0.25 cu in, Oil Capacity Unclamped 0.52 cu in, Max. Oil Flow 25 cu in/min, Pressure Range 500 to 5000 psi
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Swing Clamp Hydraulic Cylinder
Single Acting/Double Acting:
Double Acting
Clamping Force:
1,250 lbf
Total Stroke:
0.89 in
Clamping Stroke:
0.39 in
Effective Area Clamped:
0.28 sq in
Turns:
Left
Max. Pressure:
5,000 psi
Effective Area Unclamped:
0.59 sq in
Type:
Swing
Number of Bolts:
3
Oil Capacity Unclamped:
0.52 cu in
Outside Dia.:
1.37 in
Pressure Range:
500 to 5000 psi
Includes:
Mounting Bolts and Arm C-Clip
Mounting Hole Dia.:
0.268 in
Port Size:
#4 SAE
Body Style:
Upper Flange
Function:
Double Acting
Max. Oil Flow:
25 cu in/min
Bolt Size:
1/4-28"
Swing Angle:
90 Degrees
Stroke:
0.89";Oil Capacity Clamped=0.25 cu in"
Extended Height:
5.31 in
Min. Hole Depth:
0.75 in
Material of Construction:
Steel
For Use With:
CAS51
Mounting Thread:
1/4-28""
Cylinder Type:
Swing
Series:
SU
Body Material:
Steel
Mounting Style:
Upper Flange
Package Quantity:
1
