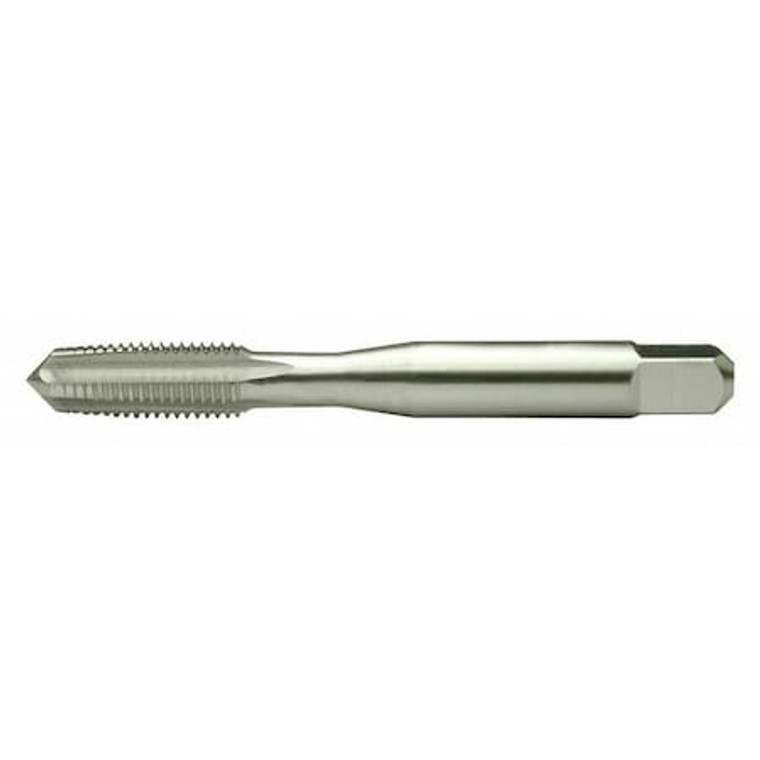

Straight Flute Hand Tap, Taper, 4 Flutes - 307707

Straight Flute Hand Tap, Taper, 4 Flutes - 307707

Greenfield Threading
SKU:
307707
|
UPC:
662355144992
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Straight Flute Tap, Thread Size 7/8 In.-9, UNC, Taper, Overall Length 4 11/16 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 2 7/32 in, 75 Percent Thread Drill Size 19.50 mm, Thread Limit H4, Class of Fit 2B
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Shank Dia.:
0.697";Tap Thread Size=7/8"-9"
Tap Chamfer:
Taper
Tap Material:
High Speed Steel
Number of Flutes:
4
Tap Thread Type:
UNC
Tap Size:
7/8";Tap Style=Straight Flute (Hand)"
Tap Dimension Type:
Inch
Overall Length:
4-11/16";Tap Grouping=Tap"
Tap Finish:
Bright
List Number:
HTGP
Pitch Diameter Limit:
H4
Thread Direction:
Right Hand
Number of Pieces:
1
Thread Length:
2-7/32";Standards=USCTI Table 302A"
Cutting Direction - Machining:
Right Hand
Series:
HTGP
Square Size:
0.5230 in
Thread Size:
7/8-9"
Thread Limit:
H4
Primary Material Application ISO Code:
K, M, N, P
Primary Material Application:
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Spiral Direction:
Neutral
Shank Type - Machining:
Straight
Class of Fit:
2B
Tap Shank Standard:
USCTI
Threads per Inch:
9
Extended Neck:
Yes
Shank Length:
2 7/32 in
55% Thread Drill Size:
51/64 in
Tap Length Standard:
USCTI
Thread Standard:
UNC
65% Thread Drill Size:
25/32 in
75% Thread Drill Size:
19.50 mm
Measurement System:
Fractional Inch
Helix Angle:
0 Degrees
Size:
7/8";Package Quantity=1"
