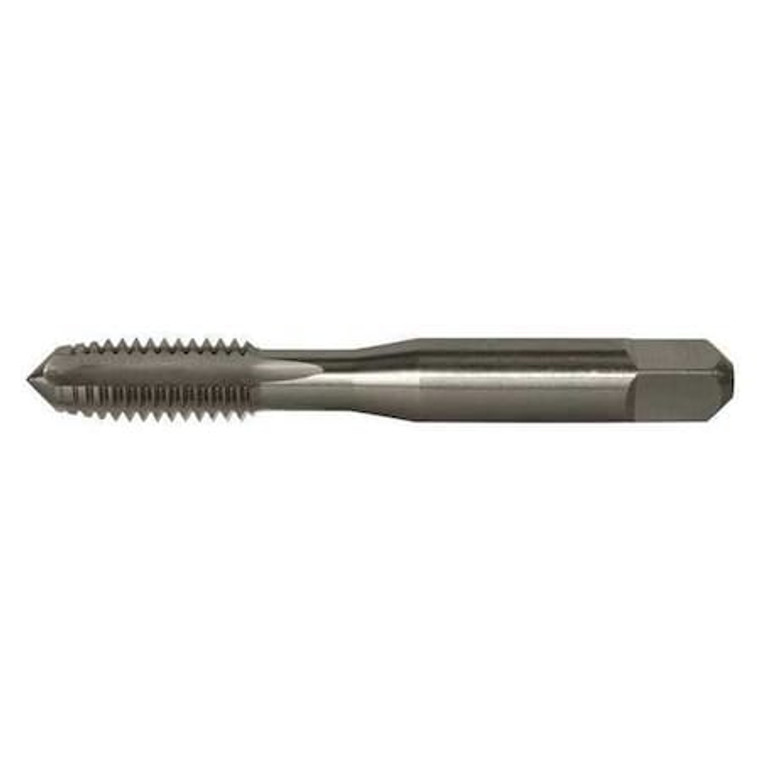

Straight Flute Hand Tap, Plug 4 Flutes - 328943

Straight Flute Hand Tap, Plug 4 Flutes - 328943

Greenfield Threading
SKU:
328943
|
UPC:
662355148945
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Straight Flute Tap, Thread Size M20x2.5, Metric Coarse, Plug, Overall Length 13.54 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 30.99 mm, 75 Percent Thread Drill Size 17.50 mm, Thread Limit D7, Class of Fit 6H
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Shank Dia.:
8.08mm
Tap Thread Size:
M20-2.50
Tap Chamfer:
Plug
Tap Material:
High Speed Steel
Number of Flutes:
4
Tap Thread Type:
Metric Coarse
Tap Size:
M20
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Metric
Overall Length:
80.00mm
Standards:
USCTI Table 302A
Thread Direction:
Right Hand
Tap Finish:
Bright
List Number:
HTGP
Tap Grouping:
Tap
Pitch Diameter Limit:
D7
Thread Length:
19.00mm
Number of Pieces:
1
Cutting Direction - Machining:
Right Hand
Series:
HTGP
Thread Limit:
D7
Measurement System:
Metric
Primary Material Application ISO Code:
K, M, N, P
Square Size:
12.42 mm
Primary Material Application:
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Pitch:
2.50mm
Shank Type - Machining:
Straight
75% Thread Drill Size:
17.50 mm
Shank Length:
2 15/32 in
Thread Size:
M20x2.5
Tap Shank Standard:
USCTI
65% Thread Drill Size:
45/64 in
55% Thread Drill Size:
18.20 mm
Tap Length Standard:
USCTI
Extended Neck:
Yes
Spiral Direction:
Neutral
Thread Standard:
Metric Coarse
Class of Fit:
6H
Helix Angle:
0 Degrees
Size:
M20
Package Quantity:
1
