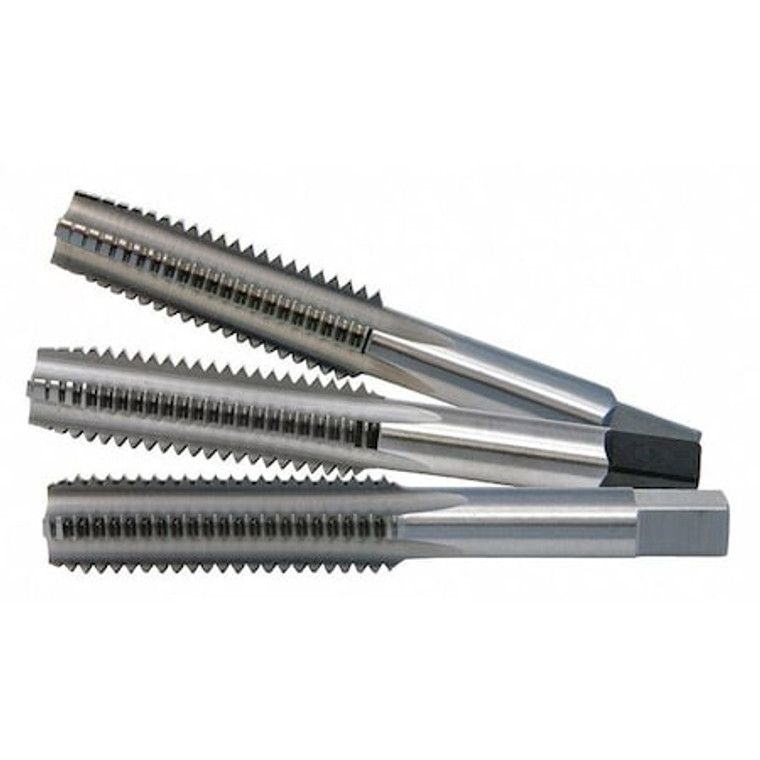

Straight Flute Hand Tap, Bottoming, Plug, Taper 4 Flutes - C63256

Straight Flute Hand Tap, Bottoming, Plug, Taper 4 Flutes - C63256

Cle-Line
SKU:
C63256
|
UPC:
697334632566
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Three-Piece Hand Tap Set, Tap Thread Size M20x2.5, High Speed Steel, Bright (Uncoated), Thread Standard Metric Coarse, Thread Length 50.80 mm, Overall Length 13.51 mm, 75 Percent Thread Drill Size 17.50 mm, Thread Limit D7, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Tap Thread Size:
M20-2.50
Shank Dia.:
3.58mm
Tap Material:
High Speed Steel
Tap Chamfer:
Bottoming, Plug, Taper
Number of Flutes:
4
Tap Thread Type:
Metric Coarse
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Metric
Overall Length:
96.84mm
Pitch Diameter Limit:
D7
Thread Length:
42.07mm
Tap Grouping:
Tap Set
Tap Finish:
Bright
Standards:
USCTI Table 302
Thread Direction:
Right Hand
List Number:
0404M
Number of Pieces:
1
Cutting Direction - Machining:
Right Hand
Series:
0404M
Extended Neck:
Yes
Tap Shank Standard:
USCTI
Shank Length:
62.70 mm
Tap Length Standard:
USCTI
55% Thread Drill Size:
18.20 mm
75% Thread Drill Size:
17.50 mm
Measurement System:
Metric
Spiral Direction:
Neutral
Thread Pitch:
2.50mm
Square Size:
12.42 mm
Thread Limit:
D7
Shank Type - Machining:
Straight
65% Thread Drill Size:
45/64 in
Thread Standard:
Metric Coarse
Thread Size:
M20x2.5
Class of Fit:
6H
Tap Type:
Straight Flute
Package Quantity:
1
