Straight Flute Hand Tap Bottoming, Plug, Taper, 4 Flutes - C63252

Straight Flute Hand Tap Bottoming, Plug, Taper, 4 Flutes - C63252

Cle-Line
SKU:
C63252
|
UPC:
697334632528
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

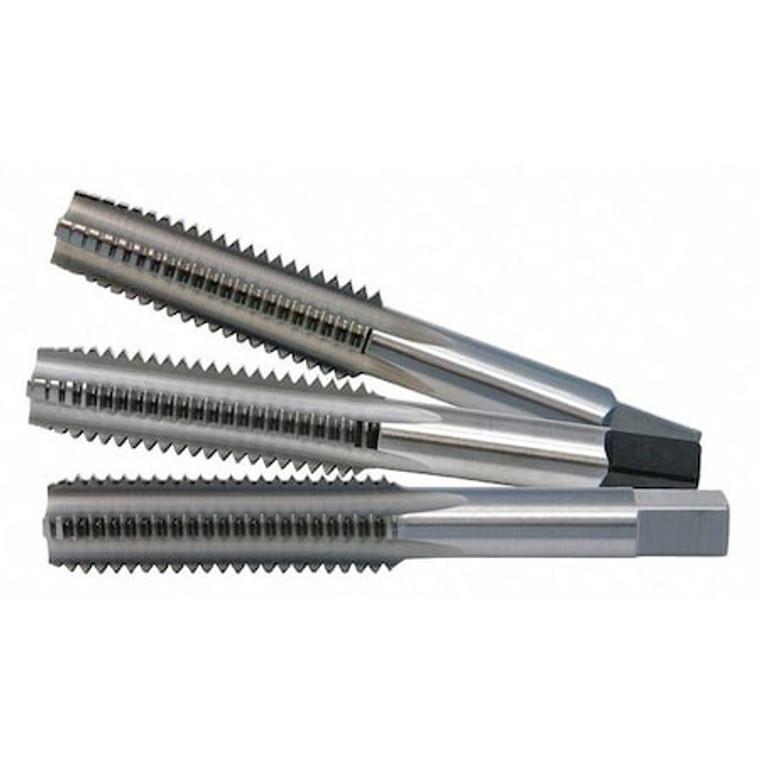

Three-Piece Hand Tap Set, Tap Thread Size M18x2.5, High Speed Steel, Bright (Uncoated), Thread Standard Metric Coarse, Thread Length 46.04 mm, Overall Length 102.39 mm, 75 Percent Thread Drill Size 15.50 mm, Thread Limit D7, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Shank Dia.:
4.27mm
Tap Thread Size:
M18-2.50
Tap Chamfer:
Bottoming, Plug, Taper
Tap Material:
High Speed Steel
Number of Flutes:
4
Tap Thread Type:
Metric Coarse
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Metric
Overall Length:
96.84mm
List Number:
0404M
Tap Finish:
Bright
Tap Grouping:
Tap Set
Thread Length:
42.07mm
Thread Direction:
Right Hand
Number of Pieces:
1
Pitch Diameter Limit:
D7
Standards:
USCTI Table 302
Cutting Direction - Machining:
Right Hand
Series:
0404M
Thread Limit:
D7
Spiral Direction:
Neutral
Measurement System:
Metric
Tap Shank Standard:
USCTI
Shank Length:
56.00 mm
Shank Type - Machining:
Straight
Thread Standard:
Metric Coarse
Square Size:
10.31 mm
Extended Neck:
Yes
55% Thread Drill Size:
16.20 mm
75% Thread Drill Size:
15.50 mm
65% Thread Drill Size:
5/8 in
Thread Size:
M18x2.5
Thread Pitch:
2.50mm
Tap Length Standard:
USCTI
Class of Fit:
6H
Tap Type:
Straight Flute
Package Quantity:
1
