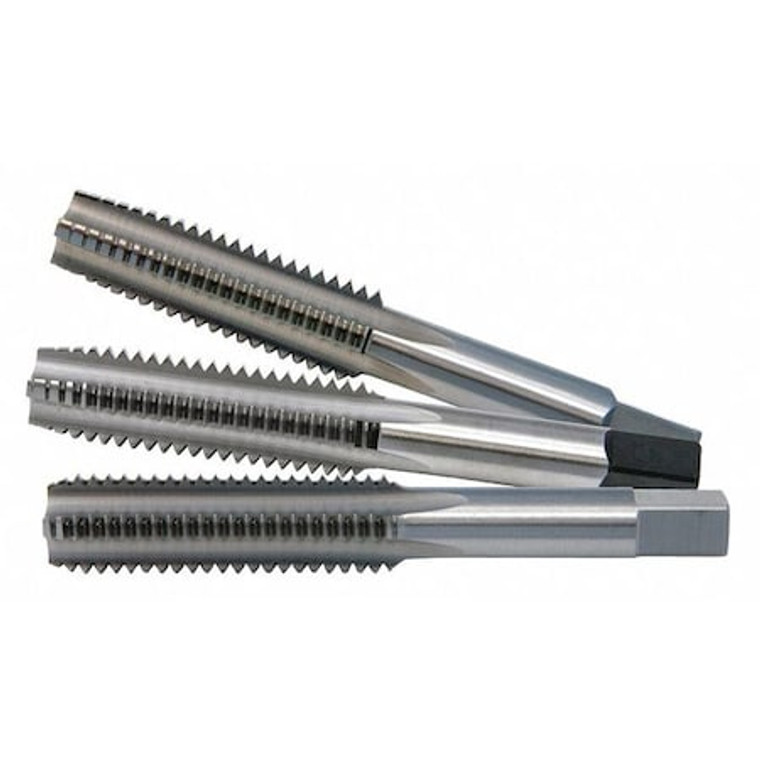

Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 Flutes - C62092

Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 Flutes - C62092

Cle-Line
SKU:
C62092
|
UPC:
697334620921
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Three-Piece Hand Tap Set, Tap Thread Size 3/4 In.-16, High Speed Steel, Bright (Uncoated), Thread Standard UNF, Thread Length 2 in, Overall Length 4 1/4 in, 75 Percent Thread Drill Size 17.50 mm, Thread Limit H3, Class of Fit 3B, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Tap Thread Size:
3/4-16"
Shank Dia.:
0.590";Tap Chamfer=Bottoming, Plug, Taper"
Tap Material:
High Speed Steel
Number of Flutes:
4
Tap Thread Type:
UNF
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Inch
Overall Length:
4-1/4";Pitch Diameter Limit=H3"
Tap Finish:
Bright
Standards:
USCTI Table 302
Thread Length:
2";List Number=4205"
Number of Pieces:
1
Thread Direction:
Right Hand
Tap Grouping:
Tap Set
Cutting Direction - Machining:
Right Hand
Series:
404
Shank Length:
2 1/4 in
Spiral Direction:
Neutral
Thread Limit:
H3
Measurement System:
Fractional Inch
Threads per Inch:
16
Thread Size:
3/4-16"
65% Thread Drill Size:
17.70 mm
Square Size:
0.4420 in
75% Thread Drill Size:
17.50 mm
Shank Type - Machining:
Straight
Thread Standard:
UNF
Extended Neck:
Yes
Tap Shank Standard:
USCTI
Tap Length Standard:
USCTI
55% Thread Drill Size:
17.90 mm
Class of Fit:
3B
Tap Type:
Straight Flute
Package Quantity:
1
