Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 - C62084

Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 - C62084

Cle-Line
SKU:
C62084
|
UPC:
697334620846
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

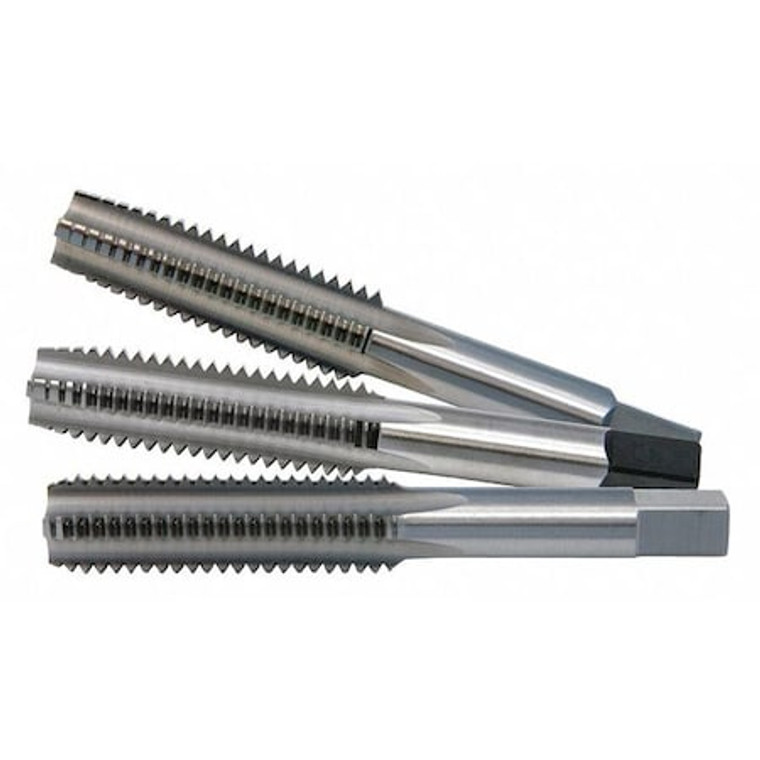

Three-Piece Hand Tap Set, Tap Thread Size 5/8 In.-18, High Speed Steel, Bright (Uncoated), Thread Standard UNF, Thread Length 1 13/16 in, Overall Length 3 13/16 in, 75 Percent Thread Drill Size 14.50 mm, Thread Limit H3, Class of Fit 3B, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Tap Thread Size:
5/8-18"
Shank Dia.:
0.480";Tap Material=High Speed Steel"
Tap Chamfer:
Bottoming, Plug, Taper
Number of Flutes:
4
Tap Thread Type:
UNF
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Inch
Overall Length:
3-13/16";Thread Length=1-13/16""
Pitch Diameter Limit:
H3
Tap Grouping:
Tap Set
Tap Finish:
Bright
Thread Direction:
Right Hand
Number of Pieces:
1
Standards:
USCTI Table 302
List Number:
4205
Cutting Direction - Machining:
Right Hand
Series:
404
65% Thread Drill Size:
37/64 in
Extended Neck:
Yes
Thread Standard:
UNF
Threads per Inch:
18
Measurement System:
Fractional Inch
Shank Type - Machining:
Straight
Tap Length Standard:
USCTI
Square Size:
0.3600 in
Tap Shank Standard:
USCTI
Thread Limit:
H3
55% Thread Drill Size:
14.80 mm
Spiral Direction:
Neutral
Thread Size:
5/8-18"
Shank Length:
2 in
75% Thread Drill Size:
14.50 mm
Class of Fit:
3B
Tap Type:
Straight Flute
Package Quantity:
1
