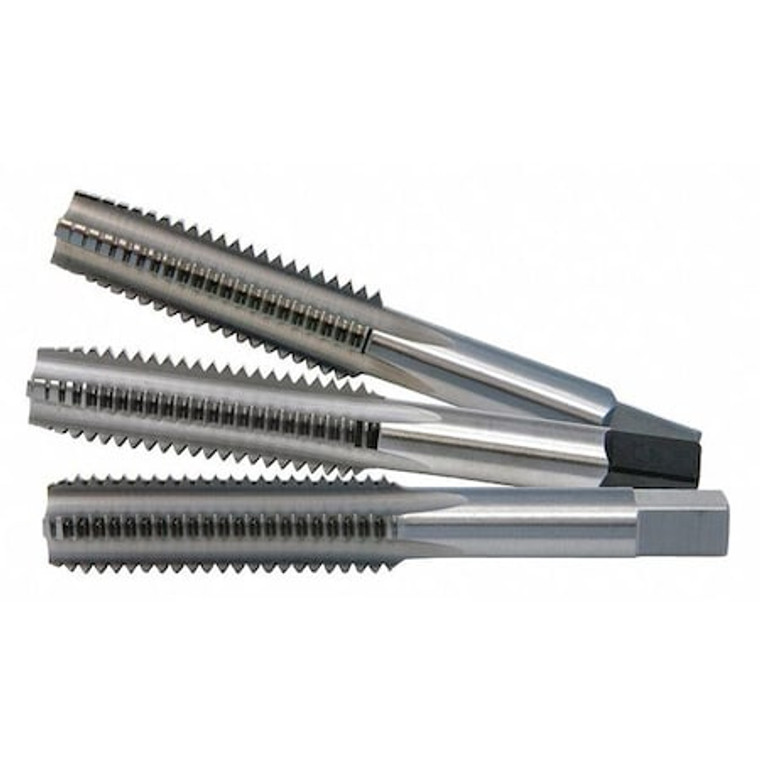

Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 - C62080

Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 - C62080

Cle-Line
SKU:
C62080
|
UPC:
697334620808
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Three-Piece Hand Tap Set, Tap Thread Size 5/8 In.-11, High Speed Steel, Bright (Uncoated), Thread Standard UNC, Thread Length 1 13/16 in, Overall Length 3 13/16 in, 75 Percent Thread Drill Size 13.60 mm, Thread Limit H3, Class of Fit 3B, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Tap Thread Size:
5/8-11"
Shank Dia.:
0.480";Tap Material=High Speed Steel"
Tap Chamfer:
Bottoming, Plug, Taper
Number of Flutes:
4
Tap Thread Type:
UNC
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Inch
Overall Length:
3-13/16";Number of Pieces=1"
Tap Grouping:
Tap Set
List Number:
4205
Thread Direction:
Right Hand
Thread Length:
1-13/16";Tap Finish=Bright"
Standards:
USCTI Table 302
Cutting Direction - Machining:
Right Hand
Series:
404
Shank Type - Machining:
Straight
Tap Shank Standard:
USCTI
55% Thread Drill Size:
14.20 mm
Tap Length Standard:
USCTI
65% Thread Drill Size:
13.90 mm
75% Thread Drill Size:
13.60 mm
Thread Size:
5/8-11"
Measurement System:
Fractional Inch
Spiral Direction:
Neutral
Threads per Inch:
11
Shank Length:
2 in
Extended Neck:
Yes
Square Size:
0.3600 in
Thread Standard:
UNC
Thread Limit:
H3
Class of Fit:
3B
Tap Type:
Straight Flute
Pitch Diameter Limit:
H3
Package Quantity:
1
