Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 - C54762

Straight Flute Hand Tap, Bottoming, Plug, Taper, 4 - C54762

Cleveland
SKU:
C54762
|
UPC:
697334547624
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

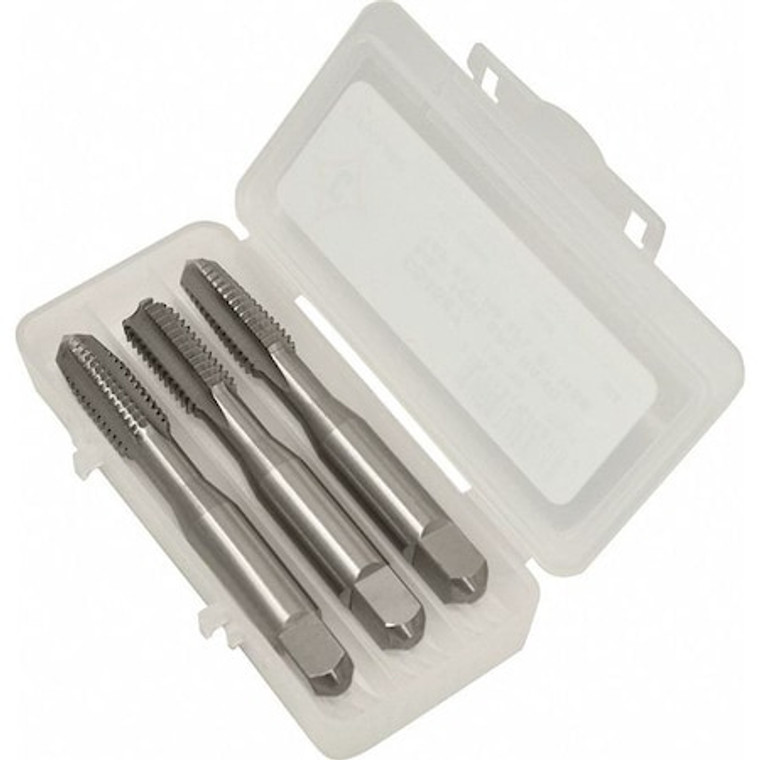

Three Piece Tap Kit, Tap Thread Size 9/16 In.-12, High Speed Steel, Bright (Uncoated), Thread Standard UNC, Thread Length 1, Overall Length 3 19/32 in, 75 Percent Thread Drill Size 12.20 mm, Thread Limit 2B, Class of Fit 3B, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Shank Dia.:
Shank Dia.
Tap Thread Size:
9/16-12"
Tap Chamfer:
Bottoming, Plug, Taper
Tap Material:
High Speed Steel
Number of Flutes:
4
Tap Thread Type:
UNC
Tap Size:
9/16";Tap Style=Straight Flute (Hand)"
Tap Dimension Type:
Inch
Overall Length:
3-19/32";Standards=USCTI Table 302A"
List Number:
5512
Tap Finish:
Bright
Thread Direction:
Right Hand
Thread Length:
1-21/32";Number of Pieces=3"
Pitch Diameter Limit:
H3
Includes:
(1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap
Cutting Direction - Machining:
Right Hand
Class of Fit:
3B
Primary Material Application:
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Coolant Fed:
Non-Coolant Through
55% Thread Drill Size:
1/2 in
Shank Length:
1 15/16 in
Features:
Taper-Plug-Bottoming
Tap Type:
Straight Flute
Primary Material Application ISO Code:
K, M, N, P
Square Size:
5/16 in
Thread Limit:
2B
Series:
1004
65% Thread Drill Size:
12.50 mm
Extended Shank:
No
Thread Standard:
UNC
Measurement System:
Fractional Inch
75% Thread Drill Size:
12.20 mm
Number Of Taps:
3
Tap Shank Standard:
USCTI Table 302A
Threads per Inch:
12
Package Quantity:
1
