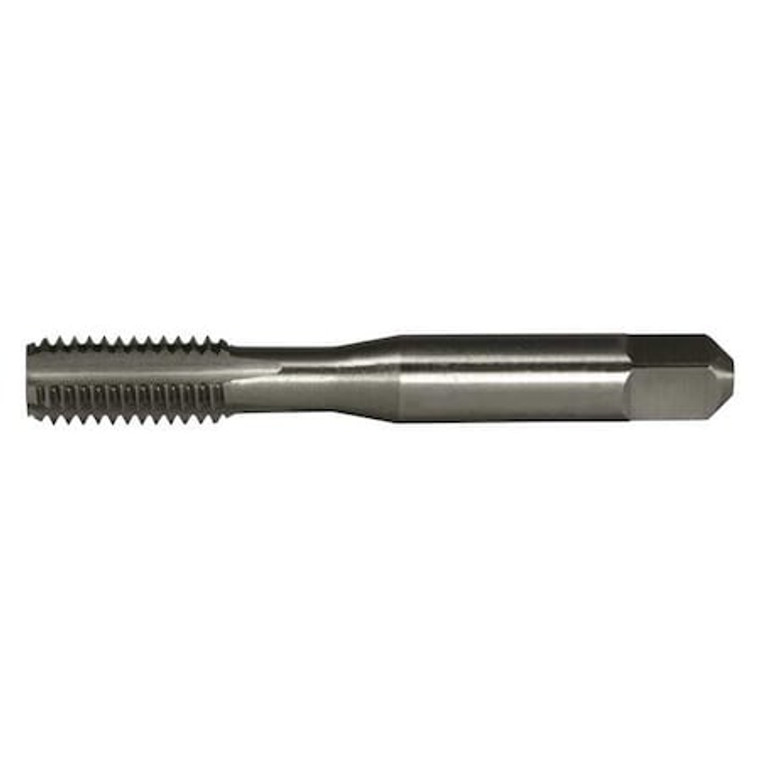

Straight Flute Hand Tap Bottoming, 4 Flutes - 328950

Straight Flute Hand Tap Bottoming, 4 Flutes - 328950

Greenfield Threading
SKU:
328950
|
UPC:
662355148952
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Straight Flute Tap, Thread Size M20x2.5, Metric Coarse, Bottoming, Overall Length 13.54 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 50.80 mm, 75 Percent Thread Drill Size 17.50 mm, Thread Limit D7, Class of Fit 6H
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Tap Thread Size:
M20-2.50
Shank Dia.:
4.27mm
Tap Material:
High Speed Steel
Tap Chamfer:
Bottoming
Number of Flutes:
4
Tap Thread Type:
Metric Coarse
Tap Size:
M20
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Metric
Overall Length:
54.10mm
Thread Length:
9.65mm
Pitch Diameter Limit:
D7
Standards:
USCTI Table 302A
Thread Direction:
Right Hand
Tap Grouping:
Tap
List Number:
HTGP
Tap Finish:
Bright
Number of Pieces:
1
Cutting Direction - Machining:
Right Hand
Series:
HTGP
Tap Length Standard:
USCTI
Shank Type - Machining:
Straight
Spiral Direction:
Neutral
55% Thread Drill Size:
18.20 mm
Shank Length:
2 15/32 in
Thread Limit:
D7
Thread Size:
M20x2.5
Primary Material Application ISO Code:
K, M, N, P
Measurement System:
Metric
Square Size:
12.42 mm
Thread Standard:
Metric Coarse
Tap Shank Standard:
USCTI
Thread Pitch:
2.50mm
Extended Neck:
Yes
Primary Material Application:
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
75% Thread Drill Size:
17.50 mm
65% Thread Drill Size:
45/64 in
Class of Fit:
6H
Helix Angle:
0 Degrees
Size:
M20
Package Quantity:
1
