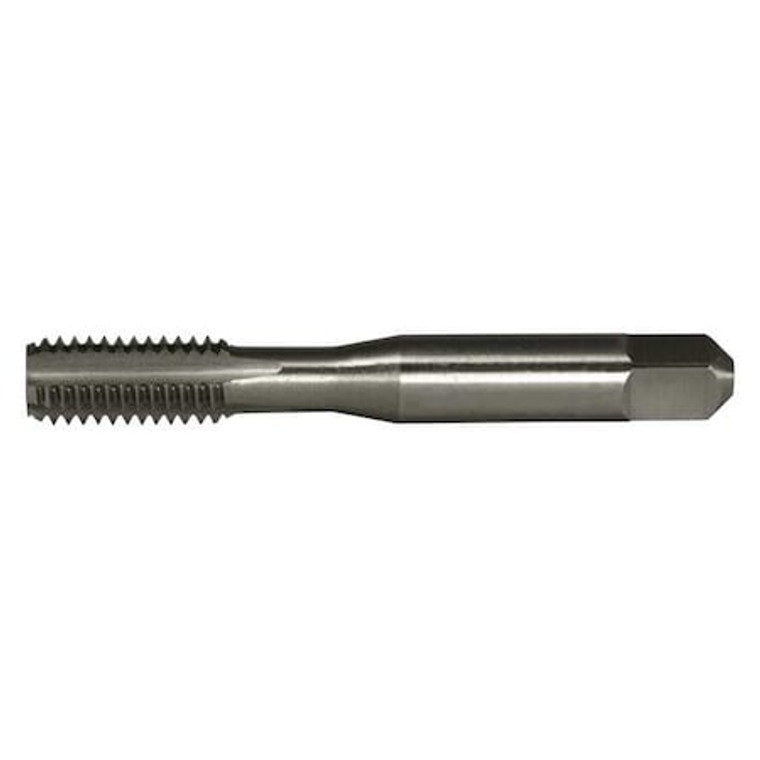

Straight Flute Hand Tap, Bottoming 4 Flutes - 308473

Straight Flute Hand Tap, Bottoming 4 Flutes - 308473

Greenfield Threading
SKU:
308473
|
UPC:
662355146057
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Straight Flute Tap, Thread Size 1 1/8 In.-12, UNF, Bottoming, Overall Length 5 7/16 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 2 9/16 in, 75 Percent Thread Drill Size 1.0438 in, Thread Limit H4, Class of Fit 2B
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Shank Dia.:
0.896";Tap Thread Size=1-1/8"-12"
Tap Material:
High Speed Steel
Tap Chamfer:
Bottoming
Number of Flutes:
4
Tap Thread Type:
UNF
Tap Size:
1-1/8";Tap Style=Straight Flute (Hand)"
Tap Dimension Type:
Inch
Overall Length:
5-7/16";Tap Grouping=Tap"
Tap Finish:
Bright
Thread Direction:
Right Hand
Pitch Diameter Limit:
H4
Number of Pieces:
1
Standards:
USCTI Table 302A
List Number:
HTGP
Thread Length:
2-9/16";Cutting Direction - Machining=Right Hand"
Series:
HTGP
Primary Material Application ISO Code:
K, M, N, P
Extended Neck:
Yes
Primary Material Application:
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Size:
1 1/8-12"
Shank Length:
2 7/8 in
Shank Type - Machining:
Straight
Thread Limit:
H4
Spiral Direction:
Neutral
Thread Standard:
UNF
75% Thread Drill Size:
1.0438 in
Square Size:
0.6720 in
Class of Fit:
2B
Threads per Inch:
12
Tap Shank Standard:
USCTI
Tap Length Standard:
USCTI
65% Thread Drill Size:
1.0546 in
Measurement System:
Fractional Inch
Helix Angle:
0 Degrees
Size:
1-1/8";Package Quantity=1"
