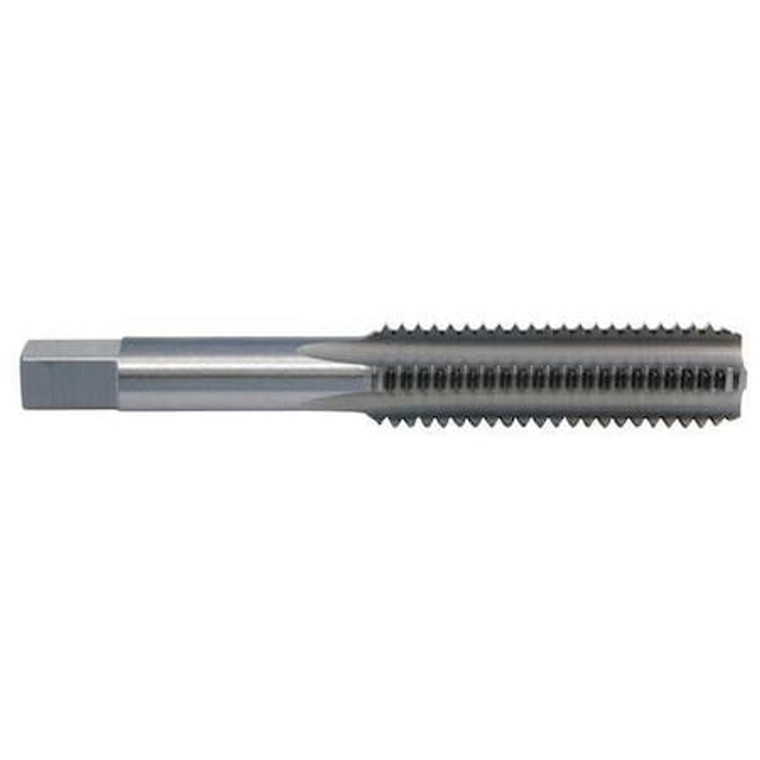

Straight Flute Hand Tap, Bottoming, 2 - C62103

Straight Flute Hand Tap, Bottoming, 2 - C62103

Cle-Line
SKU:
C62103
|
UPC:
697334621034
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Straight Flute Tap, Thread Size 1 In.-8, UNC, Bottoming, Overall Length 5 1/8 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 2 1/2 in, 75 Percent Thread Drill Size 22.25 mm, Thread Limit H4, Class of Fit 3B
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Tap Thread Size:
1-8"
Shank Dia.:
0.800";Tap Chamfer=Bottoming"
Tap Material:
High Speed Steel
Number of Flutes:
2
Tap Thread Type:
UNC
Tap Style:
Straight Flute (Hand)
Tap Dimension Type:
Inch
Overall Length:
5-1/8";List Number=379"
Tap Grouping:
Tap
Thread Direction:
Right Hand
Number of Pieces:
1
Standards:
USCTI Table 302
Tap Finish:
Bright
Thread Length:
2-1/2";Pitch Diameter Limit=H4"
Cutting Direction - Machining:
Right Hand
Series:
403
Thread Limit:
H4
75% Thread Drill Size:
22.25 mm
Shank Type - Machining:
Straight
Square Size:
0.1100 in
Measurement System:
Fractional Inch
Threads per Inch:
8
Spiral Direction:
Neutral
Tap Length Standard:
USCTI
Extended Neck:
Yes
Thread Size:
1-8"
65% Thread Drill Size:
57/64 in
Shank Length:
2 5/8 in
Primary Material Application:
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
55% Thread Drill Size:
29/32 in
Primary Material Application ISO Code:
K, N, P
Tap Shank Standard:
USCTI
Thread Standard:
UNC
Class of Fit:
3B
Helix Angle:
0 Degrees
Package Quantity:
1
