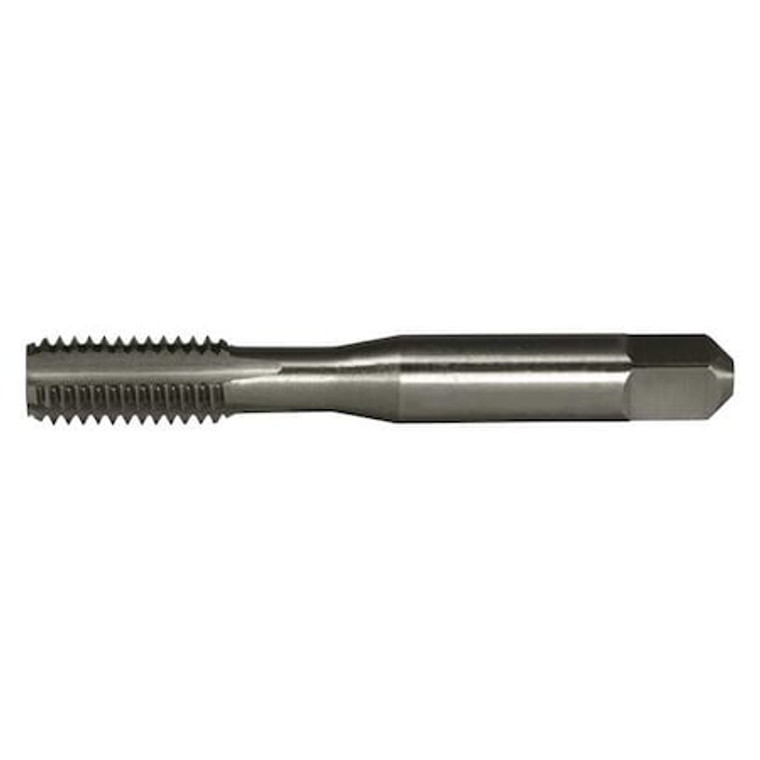

Straight Flute Hand Tap, 1-1/2"-12, Bottoming, 6 Flutes, UNF - 308838

Straight Flute Hand Tap, 1-1/2"-12, Bottoming, 6 Flutes, UNF - 308838

Greenfield Threading
SKU:
308838
|
UPC:
662355146552
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Straight Flute Tap, Thread Size 1 1/2 In.-12, UNF, Bottoming, Overall Length 6 3/8 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 3 in, 75 Percent Thread Drill Size 1.4188 in, Thread Limit H4, Class of Fit 2B
Additional Information
Country of Origin:
United States
Item:
Straight Flute Hand Tap
Tap Thread Size:
1-1/2-12"
Tap Chamfer:
Bottoming
Number of Flutes:
6
Tap Thread Type:
UNF
Shank Dia.:
1.233";List Number=HTGP"
Tap Dimension Type:
Inch
Thread Length:
3";Number of Pieces=1"
Thread Direction:
Right Hand
Standards:
USCTI Table 302A
Pitch Diameter Limit:
H4
Tap Style:
Straight Flute (Hand)
Tap Material:
High Speed Steel
Tap Size:
1-1/2";Tap Grouping=Tap"
Overall Length:
6-3/8";Tap Finish=Bright"
Cutting Direction - Machining:
Right Hand
Series:
HTGP
Tap Length Standard:
USCTI
75% Thread Drill Size:
1.4188 in
Class of Fit:
2B
Shank Length:
3 3/8 in
Thread Limit:
H4
Extended Neck:
Yes
Thread Standard:
UNF
Thread Size:
1 1/2-12"
Spiral Direction:
Neutral
Measurement System:
Fractional Inch
Threads per Inch:
12
Primary Material Application ISO Code:
K, M, N, P
Square Size:
0.9250 in
65% Thread Drill Size:
1.4296 in
Tap Shank Standard:
USCTI
Primary Material Application:
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Shank Type - Machining:
Straight
Helix Angle:
0 Degrees
Size:
1-1/2";Package Quantity=1"
