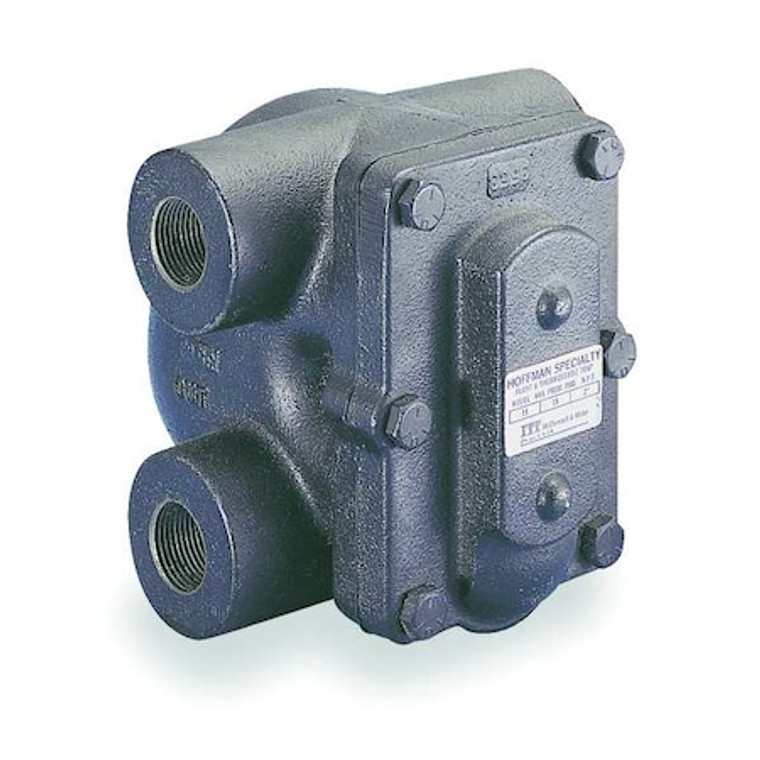

Steam Trap, 125 psi, 406F, 5-1/2 In. L - FT0125H-3

Steam Trap, 125 psi, 406F, 5-1/2 In. L - FT0125H-3

Bell & Gossett
SKU:
FT0125H-3
|
UPC:
751875046265
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Steam Trap, Application Process Equipment, Body Material Cast Iron, Condensate Capacity 1,190 lb/hr, Configuration H Pattern, Distance Between Inlet and Outlet Port 5 1/2 in, Float Material Cast Iron, Includes Air Vent Air Vent Included, Includes Strainer Strainer Included, Installation Orientation Horizontal, Maximum Capacity at Maximum Pressure Load 1,190 lb/hr at 125 psi, Number of Ports 4, Operating Pressure - Maximum 125 psi, Operating Temperature - Maximum 406 Degrees F
Additional Information
Country of Origin:
United States
Item:
Steam Trap
(F)NPT Connections:
3/4 in
Max. Operating PSI:
125 psi
End to End Length:
5 1/2 in
Condensate Capacity Lbs/Hr:
1,190 lb/hr
Max. Temp.:
406 Degrees F
Body Material:
Cast Iron
Type:
Float And Thermostatic
Includes:
Air Vent
Pressure Air Vent:
Self-Adjusting
Pipe Configuration:
(4) Pipe, (2) Inlet and (2) Outlet
Application:
Process Equipment
Steam Trap Type:
Float & Thermostatic
Operating Pressure - Maximum:
125 psi
Port Connection Gender:
Female
Includes Strainer:
Strainer Included
Includes Air Vent:
Air Vent Included
Port Types Included:
Inlet, Outlet
Port Connection Size:
3/4 in
Maximum Capacity at Maximum Pressure Load:
1,190 lb/hr at 125 psi
Port Connection Type:
NPT
Installation Orientation:
Horizontal
Distance Between Inlet and Outlet Port:
5 1/2 in
Number of Ports:
4
Configuration:
H Pattern
Operating Temperature - Maximum:
406 Degrees F
Condensate Capacity:
1,190 lb/hr
Float Material:
Cast Iron
Package Quantity:
1
