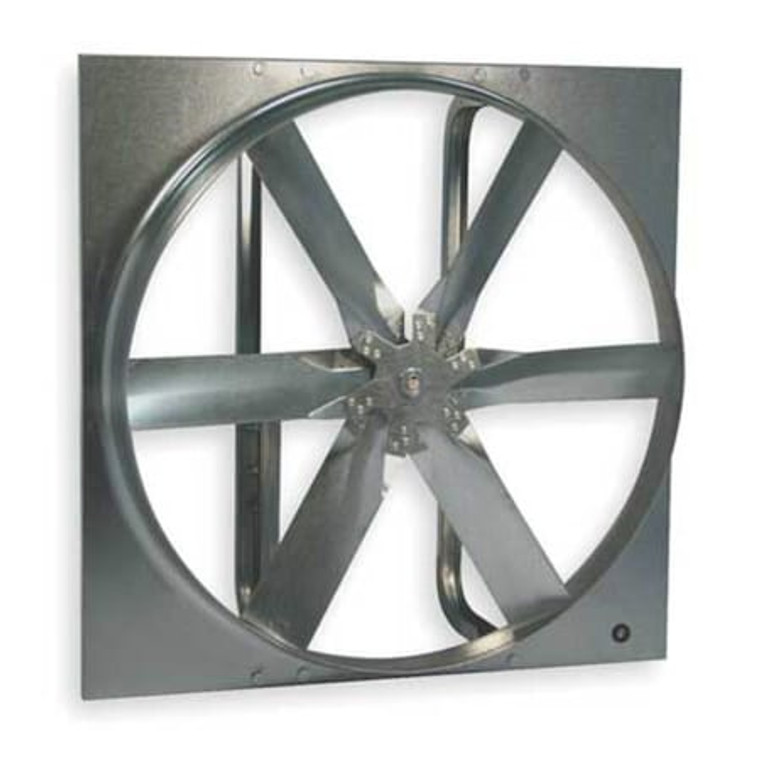

Standard Duty Exhaust Fan with Motor and Drive Package, 30 in Blade Dia, 208-230/460V AC, 1 hp - 7CC99

Standard Duty Exhaust Fan with Motor and Drive Package, 30 in Blade Dia, 208-230/460V AC, 1 hp - 7CC99

Dayton
SKU:
7CC99
|
UPC:
799471519479
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Exhaust Fan with Drive Package, Assembled Unassembled, Blade Diameter 30 in, Blade Material Steel, Drive Type Belt Drive, Exhaust Airflow @ 0.000 in SP 11,061 cfm, For Cut-Out Height 32 1/2 in, For Cut-Out Width 32 1/2 in, Frame Finish Zinc Plated, Frame Material Steel, Guard Type None, Includes Drive Package, Includes Dehumidistat No, Maximum Airflow 11,061 cfm, Maximum Noise Level 26 sones
Additional Information
Country of Origin:
Multiple
Item:
Exhaust Fan with Drive Package
Exhaust/Supply Fan Item:
Exhaust Fan
Blade Dia.:
30 in
Fan Voltage:
208-230/460V AC
Exhaust/Supply Fan Motor HP:
1 hp
Motor Enclosure:
Totally Enclosed Fan Cooled
Motor Type:
3-Phase
Fan RPM:
968
Drive Package With Motor Included:
Yes
CFM @ 0.000-In. SP:
11,061 cfm
Standards:
AMCA, UL/cUL
Propeller Material:
Galvanized Steel
Max. BHP:
1.2 hp
Flange Width:
34 in
Flange Depth:
1 in
Aluminum Wall Shutter No.:
3C309
Bearing Type:
Regreasable Pillow Block
Stock No.:
1WDC1
Width (In.):
34 in
Motor Insulation:
Class F
CFM @ 0.500-In. SP:
7,570 cfm
Max. Inlet Temp.:
104 Degrees F
Mounting Position:
Horizontal or Vertical
CFM @ 0.375-In. SP:
8,847 cfm
Dimension A:
34 in
Sones @ 0.250-In. SP @ 5 Ft.:
26
Phase:
3
Sones @ 0.000-In. SP @ 5 Ft.:
26
Galvanized Wall Shutter No.:
1C055
Frame Material:
Steel
Weatherhood No.:
1WBW1
Motor RPM:
1,725 RPM
Venturi Depth:
5 1/2 in
Dimension D:
1 in
Intake Guard No.:
1WBU4
Dimension F:
30 3/8 in
Includes:
Drive Package
Fiberglass Wall Shutter No.:
5C216
Hz:
60 Hz
Venturi Clearance Dia.:
30 3/8 in
Number of Blades:
6
Full Load Amps:
3.2-3.2/1.6
Drive Package Included:
Yes
Shaft Dia.:
3/4 in
Height:
34 in
Wall Collar Stock No.:
1WBV2
Bearing Size:
3/4 in
Max. Depth:
21 1/2 in
CFM @ 0.250-In. SP:
9,736 cfm
Dimension B:
21 1/2 in
Motorized Wall Galv. Shutter Stock No.:
3C728
Dimension E:
16 1/4 in
Assembled/Unassembled:
Unassembled
Dimension C:
5 1/4 in
CFM @ 0.125-In. SP:
10,385 cfm
Frequency:
60 Hz
Maximum Noise Level:
26 sones
Vent Design:
Ductless
Includes Motor:
Yes
Exhaust Airflow @ 0.000 in SP:
11,061 cfm
Exhaust Airflow @ 0.375 in SP:
8,847 cfm
Exhaust Airflow @ 0.125 in SP:
10,385 cfm
Assembled:
Unassembled
Noise Level @ 0.000 in SP @ 5 ft:
26 sones
Includes Dehumidistat:
No
Includes Grill:
No
Motor Speed:
1,760 RPM
For Cut-Out Length:
32 1/2 in
Maximum Inlet Temperature:
104 Degrees F
Exhaust Airflow @ 0.500 in SP:
7,570 cfm
Number of Fans:
1
Venturi Diameter:
30 1/2 in
Frame Finish:
Zinc Plated
Manufacturer Warranty Length:
1 yr
Blade Diameter:
30 in
Blade Finish:
Galvanized
Speed Controllable:
No
For Cut-Out Width:
32 1/2 in
Overall Depth:
21 1/2 in
Overall Height:
34 in
Noise Level @ 0.125 in SP @ 5 ft:
25 sones
Number of Shutters:
0
Nameplate Voltage:
230/460V AC
Number of Speeds:
1
Mounting Orientation:
Horizontal, Vertical
Exhaust Airflow @ 0.250 in SP:
9,736 cfm
Blade Material:
Steel
Ventilation Type:
Exhaust
Drive Type:
Belt Drive
Shaft Diameter:
3/4 in
Fan Style:
Panel
Full Load Current:
3.2 A
Overall Width:
34 in
For Cut-Out Height:
32 1/2 in
Maximum Airflow:
11,061 cfm
Motor Horsepower:
1 hp
Guard Type:
None
Voltage:
208-230/460
Width:
34";Package Quantity=1"
