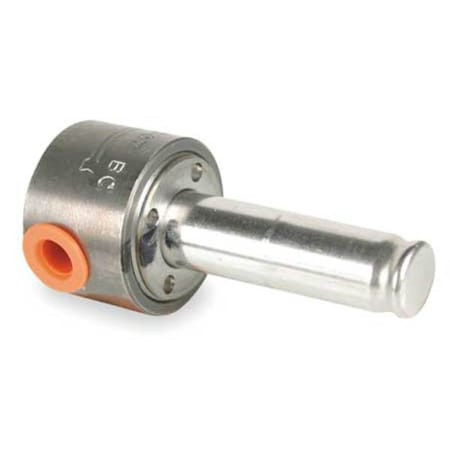

Stainless Steel Solenoid Valve Less Coil, Normally Closed, 1/8 in Pipe Size - 008037

Stainless Steel Solenoid Valve Less Coil, Normally Closed, 1/8 in Pipe Size - 008037

Dayton
SKU:
008037
|
UPC:
190735278383
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve Body, Valve Ways 2-Way, Valve Positions 2-Position, Valve Starting Configuration Normally Closed, Body Material Stainless Steel, Nominal Pipe Size 1/8 in, Orifice Diameter 3/32 in, Coefficient of Volume (Cv) 0.22, Operating Pressure Differential - Minimum 0 psi, Operating Pressure Differential Air/Inert Gas - Maximum 300 psi, Operating Pressure Differential Water - Maximum 300 psi, Fluid Temperature - Maximum 180 Degrees F, Environmental Rating Corrosive, Indoor, Outdoor
Additional Information
Country of Origin:
Mexico
Pipe Size - Valves:
1/8 in
Valve Design:
2-Way
Item:
Solenoid Valve Less Coil
Orifice Dia.:
3/32 in
Valve Configuration:
Normally Closed
Body Material - Valves:
Stainless Steel
Gasket Material:
Buna N
Coefficient of Volume:
0.22
Environmental Rating - Valves:
Corrosive, Indoor, Outdoor
Max. Operating Pressure Differential:
300 psi
Pipe Size:
1/8";Seal Material - Valves=Buna-N"
Airflow:
Up to 34.0 scfm
Max. Fluid Temp.:
180 Degrees F
Safe Working Water Pressure:
500 psi
Flow Range:
0.16 to 3.8 gpm
Overall Height:
2 3/4 in
Operation Type:
Direct Acting
Body Material:
Stainless Steel
For Use With:
Dayton Solenoid Coils
Max. Operating Pressure Differential Water:
300 psi
Max. Operating Pressure Differential Light Oil:
300 psi
Valve Ways and Positions:
2-Way
Overall Length:
1 13/16 in
Max. Operating Pressure Differential Air/Inert Gas:
300 psi
Min. Operating Pressure Differential:
0 psi
Media:
Air/Steam/Water
Standards:
UL Listed
Application:
Dental Equipment, Humidifiers, Instrumentation, Vending Machines, Water Treatment, Welding Equipment
Coil Enclosure:
NEMA Type 1
Seal Material:
NBR
Coil Insulation Class:
F
Thread Type:
NPT
Operating Temperature - Maximum:
180 Degrees F
Valve Ways:
2-Way
Operating Temperature - Minimum:
Not Applicable
Product Type:
Industrial Solenoid Valve
Compatible with Brand:
Dayton
Coefficient of Volume (Cv):
0.22
Environmental Rating:
Corrosive, Indoor, Outdoor
Valve Body Style:
Straight
Valve Positions:
2-Position
Airflow - Maximum:
34 scfm
Valve Starting Configuration:
Normally Closed
Outlet Connection Type:
NPT
Operating Pressure Differential Steam - Maximum:
Not Rated
Mounting Orientation:
Horizontal or Vertical
Nominal Pipe Size:
1/8 in
Operating Pressure Differential Light Oil - Maximum:
300 psi
Operating Pressure Differential Air/Inert Gas - Maximum:
300 psi
For Media:
Air, Light Oil, Steam, Water
Orifice Diameter:
3/32 in
Fluid Temperature - Maximum:
180 Degrees F
Operating Pressure Differential Water - Maximum:
300 psi
Operating Pressure Differential Hot Water - Maximum:
Not Rated
Inlet Connection Type:
NPT
Operating Pressure Differential - Minimum:
0 psi
Package Quantity:
1
