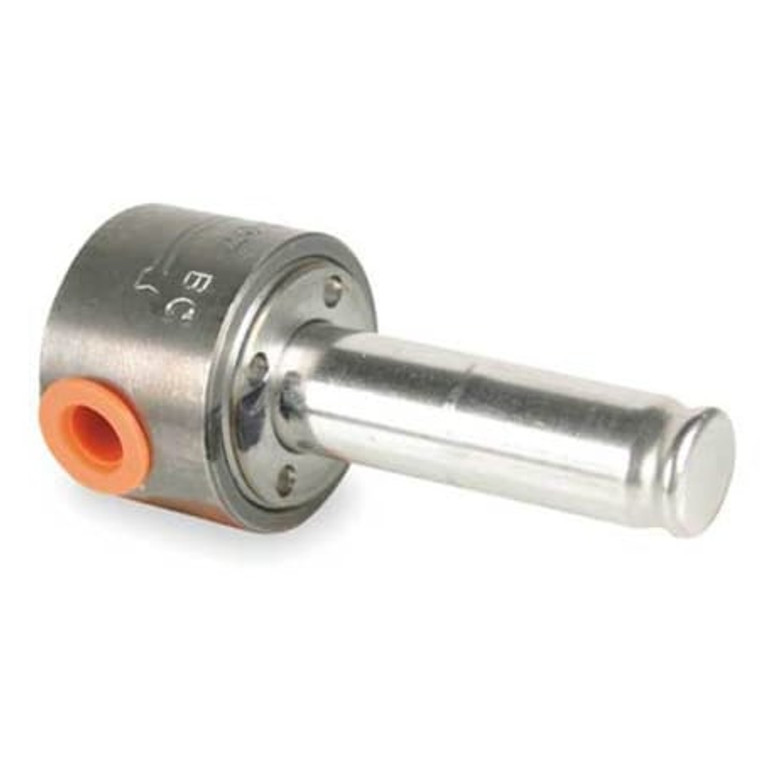

Stainless Steel Solenoid Valve Less Coil, Normally Closed, 1/4 in Pipe Size - 008041

Stainless Steel Solenoid Valve Less Coil, Normally Closed, 1/4 in Pipe Size - 008041

Dayton
SKU:
008041
|
UPC:
190735278475
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Solenoid Valve Body, Valve Ways 2-Way, Valve Positions 2-Position, Valve Starting Configuration Normally Closed, Body Material Stainless Steel, Nominal Pipe Size 1/4 in, Orifice Diameter 1/4 in, Coefficient of Volume (Cv) 0.7, Operating Pressure Differential - Minimum 0 psi, Operating Pressure Differential Air/Inert Gas - Maximum 20 psi, Operating Pressure Differential Water - Maximum 20 psi, Fluid Temperature - Maximum 180 Degrees F, Environmental Rating Corrosive, Indoor, Outdoor
Additional Information
Country of Origin:
Mexico
Pipe Size - Valves:
1/4 in
Valve Design:
2-Way
Item:
Solenoid Valve Less Coil
Orifice Dia.:
1/4 in
Valve Configuration:
Normally Closed
Body Material - Valves:
Stainless Steel
Coefficient of Volume:
0.7
For Use With:
Dayton Solenoid Coils
Safe Working Water Pressure:
500 psi
Max. Fluid Temp.:
180 Degrees F
Airflow:
Up to 29.4 scfm
Valve Ways and Positions:
2-Way
Max. Operating Pressure Differential:
20 psi
Pipe Size:
1/4";Environmental Rating - Valves=Corrosive, Indoor, Outdoor"
Overall Length:
1 1/2 in
Overall Height:
2 7/8 in
Max. Operating Pressure Differential Light Oil:
20 psi
Operation Type:
Direct Acting
Flow Range:
0.70 to 3.1 gpm
Body Material:
Stainless steel
Max. Operating Pressure Differential Air/Inert Gas:
20 psi
Min. Operating Pressure Differential:
0 psi
Media:
Air/Steam/Water
Gasket Material:
Buna N
Max. Operating Pressure Differential Water:
20 psi
Seal Material - Valves:
Buna-N
Coil Enclosure:
NEMA Type 1
Seal Material:
NBR
Standards:
UL Listed
Application:
Dental Equipment, Humidifiers, Instrumentation, Vending Machines, Water Treatment, Welding Equipment
Coil Insulation Class:
F
Coefficient of Volume (Cv):
0.7
Operating Pressure Differential Steam - Maximum:
Not Rated
Operating Pressure Differential Hot Water - Maximum:
Not Rated
Fluid Temperature - Maximum:
180 Degrees F
Compatible with Brand:
Dayton
Valve Body Style:
Straight
Environmental Rating:
Corrosive, Indoor, Outdoor
Product Type:
Industrial Solenoid Valve
Valve Starting Configuration:
Normally Closed
Operating Pressure Differential Air/Inert Gas - Maximum:
20 psi
Mounting Orientation:
Horizontal or Vertical
Thread Type:
NPT
Airflow - Maximum:
29.4 scfm
Operating Temperature - Minimum:
Not Applicable
Operating Pressure Differential Water - Maximum:
20 psi
Operating Temperature - Maximum:
180 Degrees F
Valve Positions:
2-Position
Outlet Connection Type:
NPT
For Media:
Air, Light Oil, Steam, Water
Inlet Connection Type:
NPT
Operating Pressure Differential Light Oil - Maximum:
20 psi
Nominal Pipe Size:
1/4 in
Valve Ways:
2-Way
Operating Pressure Differential - Minimum:
0 psi
Orifice Diameter:
1/4 in
Package Quantity:
1
