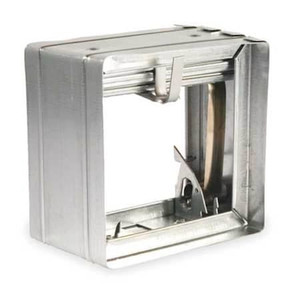

Square Fire Damper, 5-3/4 In. W, 165 Deg F - 2TGC8

Square Fire Damper, 5-3/4 In. W, 165 Deg F - 2TGC8

Dayton
SKU:
2TGC8
|
UPC:
190735232972
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
5.75 In.H-W 3.7 In.L Square Spring Fire Damper, Damper Application Fire, Frame Material Galvanized Steel, Number of Panels 1, Maximum Air Velocity None, Overall Height 5 3/4 in, Rough Opening Diameter Not Applicable, Rough Opening Shape Square, Fits Fan Diameter Not Applicable, For Duct Shape Square, Free Area 0.1 sq ft, Overall Width 5 3/4 in, Frame Material Thickness 22 ga, Overall Length 3 3/4 in, Connection Type Not Applicable, Frame Depth 3 3/4 in, Rough Opening Length Not Applicable
Additional Information
Country of Origin:
United States
Item:
5.75H-W 3.7"L Square Spring Fire Damper"
Mounting Type:
Static, Horizontal
Shape:
Square
Includes:
Stainless Steel Closure Spring; UL Fusible Link
Material:
22 ga Galvanized Steel
Damper Shape:
Square
Free Area:
0.1 sq ft
Damper Width:
5 3/4 in
Nominal Duct Height:
6 in
Fusible Link:
165 Degrees F
Damper Depth:
3 11/16 in
Fire Rated:
1 1/2 hr
Damper Item:
Fire Damper
Standards:
NFPA 90A,101, CSFM, IBC, NFPA 80, NYC MEA, UL 555
Nominal Duct Width:
6 in
Recommended Retaining Angle:
2TGG4
Damper Height:
5 3/4 in
For Use With:
Low Pressure HVAC Systems
Rough Opening Width:
6 in
Overall Width:
5 3/4 in
Overall Height:
5 3/4 in
Maximum Pressure:
Not Applicable
Overall Length:
3 3/4 in
Blade Type:
Curtain
Blade Seal Material:
Not Applicable
For Duct Shape:
Square
Damper Application:
Fire
Rough Opening Diameter:
Not Applicable
Number of Panels:
1
ACMA Leakage Class:
Not Applicable
Frame Material:
Galvanized Steel
Single Acting/Double Acting:
Not Applicable
Mounting Style:
Not Applicable
Flange Type:
Not Applicable
Mounting Position:
Horizontal
Seal Material:
Not Applicable
For Fuel Type:
Not Applicable
Flange Width:
Not Applicable
Closure Velocity Rating:
Not Applicable
Maximum Ambient Temperature:
165 Degrees F
Maximum Air Velocity:
None
Rough Opening Shape:
Square
Closure Pressure Rating:
Not Applicable
Frame Material Thickness:
22 ga
Closure Type:
Spring
Pressure Drop @ 1000 fpm (AMCA 5.2):
Not Applicable
Blade Material:
Galvanized Steel
Rough Opening Length:
Not Applicable
Connection Type:
Not Applicable
Switch Action:
Normally Open
Airflow Direction:
Horizontal
Fits Fan Diameter:
Not Applicable
Fusible Link Temperature:
165 Degrees F
Frame Less Flange:
36 sq in
Blade Orientation:
Not Applicable
Damper Type:
Static
Counterbalanced:
Not Applicable
Frame Depth:
3 3/4 in
Package Quantity:
1
