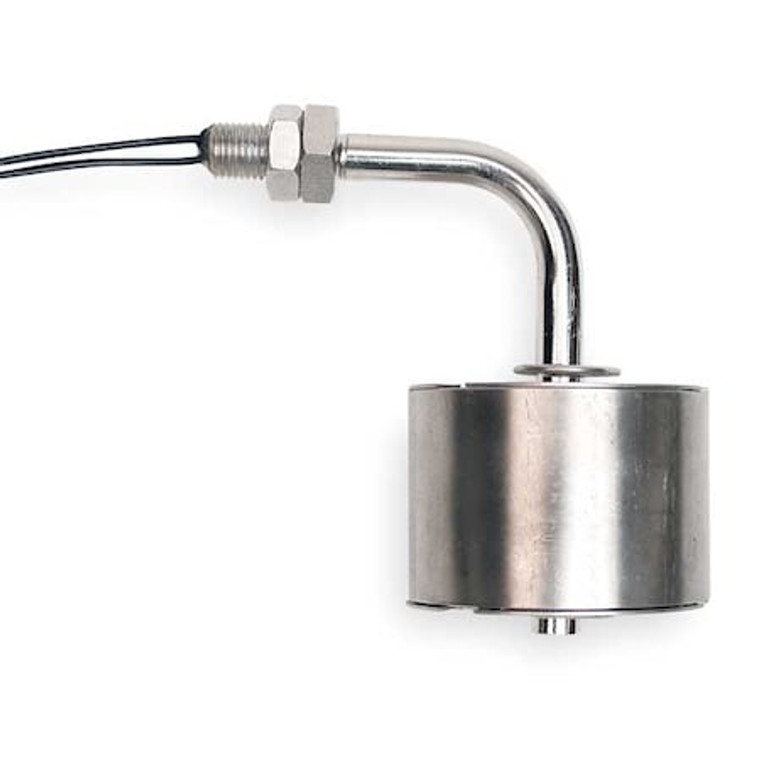

SPST Tank Liquid Level Switch Selectable 240VAC 300 psi - MS5010

SPST Tank Liquid Level Switch Selectable 240VAC 300 psi - MS5010

Madison
SKU:
MS5010
|
UPC:
94703784732
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 3/8 in - 24 UNF, Max. Pressure 300 psi, VA Rating 30, Operating Temp. Range 392 Degrees F Max., Overall Length 2.96 in, Float Material 316 Stainless Steel, Float Length 1.19 in, Float Dia. 1.13 in, Stem Material 316 Stainless Steel, Stem Length 2.9 in, Height 1.61 in, Width 1.5 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material 316 Stainless Steel
Additional Information
Country of Origin:
United States
Voltage:
240VAC
Max. Pressure:
300 psi
Item:
Alternator Closed Liquid Level Switch
Switch Function:
Selectable
Electrical Connections:
22 ga PTFE Coated 24 in Leads
Stem Length:
2.9 in
Standards:
CE, CSA, UL Listed
Stem Material:
316 Stainless Steel
Contact Form:
SPST
Float Length:
1.19 in
VA Rating:
30
Width:
1.5 in
Tank Connection Size:
3/8 in - 24 UNF
Max. Voltage:
240 V
Conduit Size:
3/8 in 24
Float Switch Contact Form:
SPST
Float Material:
316 Stainless Steel
Mounting:
Side
Float Switch Float Material:
Stainless Steel
Float Specific Gravity:
0.7
Operating Temp. Range:
392 Degrees F Max.
Body Material:
316 Stainless Steel
Max. Current:
0.28 A
Height:
1.61 in
Float Dia.:
1.13 in
Overall Length:
2.96 in
Series:
MS5010
Features:
Slosh Shield
Product Type:
Alternator Closed Liquid Level Switch
Overall Height:
1.61 in
Overall Width:
1.5 in
Minimum Media Specific Gravity:
0.88
Float Diameter:
1.9 in
Stem Thread Size:
3/8-24 UNF
Current Rating - Maximum:
0.28 A
Operating Temperature - Maximum:
392 Degrees F
Proof Pressure:
300 psi
Electrical Connection:
Lead Wires
Voltage Rating - Maximum:
120 V DC, 240 V AC
Package Quantity:
1
