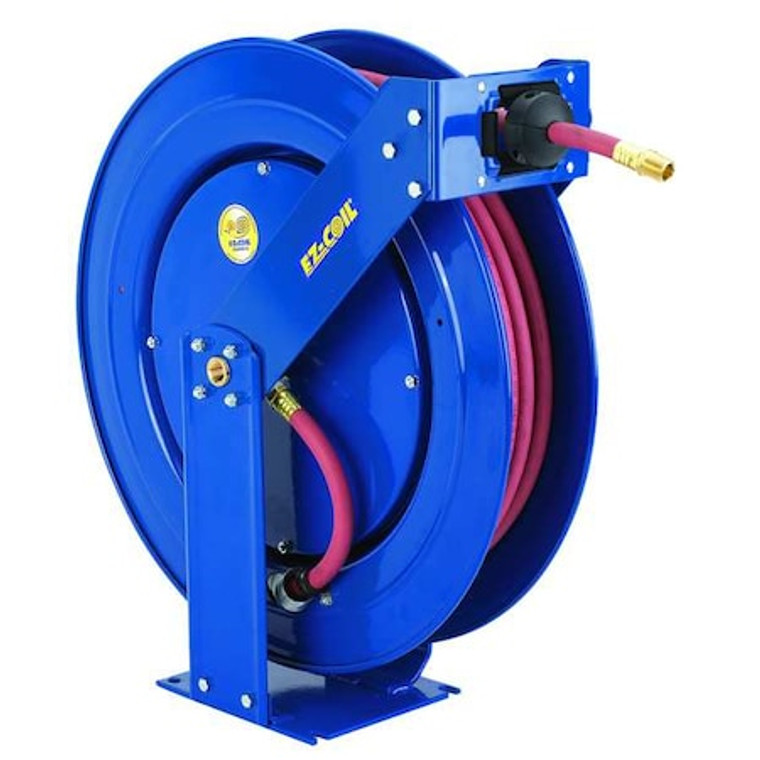

Spring Return Hose Reel, 3/8 in Hose Dia., 50 ft Length, 300 psi - EZ-TSH-350

Name: Spring Return Hose Reel, 3/8 in Hose Dia., 50 ft Length, 300 psi - EZ-TSH-350
Brand: Coxreels
SKU: EZ-TSH-350
Price: 698.04 USD
Availability: InStock

Coxreels

SKU:

EZ-TSH-350

UPC:

674255733312

Availability:

In Stock

(No reviews yet)

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction Yes, Overall Height 21 3/16 in, Overall Length 19 5/8 in, Overall Width 8 3/4 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material PVC, Hose Fitting A Gender Male

Country of Origin:: United States
Duty Rating:: Heavy Duty
Finish - Hose Reels:: Powder Coated
Hose Included:: Yes
Hose Inside Dia.:: 3/8 in
Hose Length:: 50 ft
Housing Material:: Steel
Max. Pressure:: 300 psi
Media - Hose Reels:: Air, Water, Oil
Mounting:: Bench and Vehicles, Ceiling, Floor, Wall
Overall Length:: 19 5/8 in
Overall Width:: 8 3/4 in
Application:: Air/Water Services, Pneumatic Tools, Wash-down, Lubrication, Fuel Delivery, Chemical Fluid Transfer, General Industrial, Manufacturing Plants, Lube Skids & Trucks, Service / Mechanic / Utility Vehicles, Mining, Construction & Railroad Operations, Aut
Item:: Spring Return Hose Reel
Drive Type - Hose Reels:: Spring Return
Hose Ends:: 3/8 in (M)NPT
Reel Inlet:: 3/8 in (F)NPT
Overall Height:: 21 3/16 in
Enclosed Reel:: No
Hose Material:: PVC
Bearings:: Permanently Lubricated
Swivel Material:: Brass
Max. Temp.:: 150 Degrees F
Seal Type:: Nitrile
Latch:: Locking
Hose Outlet:: 3/8 in (M)NPT
Includes:: Hose, Hose Guard, Hose Stop
Drive Type:: Spring Return
Features:: 1 Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non
Reel Width:: 9 3/8 in
Hose Outside Dia.:: 5/8 in
Hose Cover Material:: PVC
Mounting Hole Center to Center Width:: 7 in
Fitting Type:: NPT x NPT
Swivel Inlet Size:: 3/8 in
Hose Fitting A Gender:: Male
Hose Fitting A Material:: Brass
Reel Finish:: Powder Coated
Hose Capacity:: 50 ft (3/8 in I.D.)
Overall Dimensions:: 19 5/8 in L x 8 3/4 in W x 21 3/16 in H
Reel Material:: Steel
Spiral Hose Guard:: No
Swivel Outlet Type:: NPT
Swivel Outlet Thread Size:: 3/8 in - 18
Corrosion-Resistant:: Yes
Standards:: CE
Weight:: 61 lb
For Dual Hose:: No
Hose Fitting B Material:: Brass
Base Motion Type:: Stationary
Hose Reel Type:: Wall Mount Hose Reel
Hose Fitting A Type:: NPT
Reel Color:: Blue
Includes Hose:: Yes
Hose End Configuration:: 3/8 in MNPT
Swivel Inlet Type:: NPT
Pedestal Type:: Dual Pedestal
Mount Base Height:: 9 in
Hose Tube Material:: PVC
Enclosed:: No
Hose Color:: Red
Bearing Construction:: Permanently Lubricated
Swivel Outlet Size:: 3/8 in
Swivel Outlet Gender:: Male
Fasteners Included:: No
Latch Type:: Locking
Maximum Operating Pressure:: 300 psi
Twin Hose Compatible:: No
Hose Fitting B Size:: 3/8 in
Mount Base Width:: 8 in
Minimum Operating Temperature:: -15 Degrees F
Number of Mount Holes:: 4
Swivel Inlet Gender:: Female
Hose Reel Primary Application:: Air, Water
Speed Limited Retraction:: Yes
Mount Hole Diameter:: 1/2 in
Hose Fitting A Size:: 3/8 in
Includes Leader Hose:: No
Swivel Inlet Thread Size:: 3/8 in - 18
Maximum Operating Temperature:: 190 Degrees F
Hose Fitting B Type:: NPT
Fitting Size:: 3/8 in x 3/8 in
Number of Guide Arms:: Double Arm
Hose Fitting B Gender:: Male
Mounting Hole Center to Center Height:: 8 in
Reel Diameter:: 19 1/2 in
Includes Hose Stop:: Yes
Package Quantity:: 1
