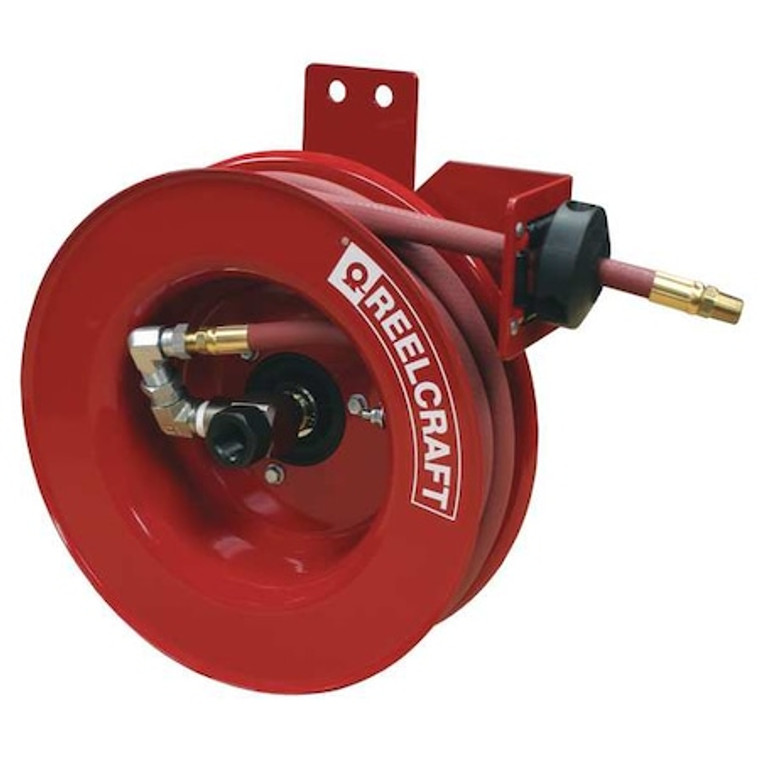

Spring Return Hose Reel, 3/8 in Hose Dia., 50 ft Length, 300 psi - 5650 OLPSMR

Spring Return Hose Reel, 3/8 in Hose Dia., 50 ft Length, 300 psi - 5650 OLPSMR

Reelcraft
SKU:
5650 OLPSMR
|
UPC:
699567009597
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 50 ft, Reel Material Carbon Steel, Mounting Location Wall, Speed Limited Retraction No, Overall Height 17 7/8 in, Overall Length 16 1/2 in, Overall Width 5 13/16 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material PVC, Hose Fitting A Gender Male
Additional Information
Country of Origin:
United States
Duty Rating:
Heavy Duty
Finish - Hose Reels:
Powder Coated
Hose Included:
Yes
Hose Inside Dia.:
3/8 in
Hose Length:
50 ft
Housing Material:
Steel
Max. Pressure:
300 psi
Media - Hose Reels:
Air, Water
Mounting:
Column, Wall
Overall Length:
16 1/2 in
Overall Width:
5 13/16 in
Application:
Air and Water
Includes:
Hose; Bumper
Drive Type - Hose Reels:
Spring Return
Bearings:
Permanently Lubricated
Seal Type:
Nitrile
Latch:
Quiet Latch
Swivel Material:
Brass
Overall Height:
17 7/8 in
Hose Material:
PVC
Hose Outlet:
1/4 in (M)NPT
Item:
Spring Return Hose Reel
Hose Ends:
1/4 in (M)NPT
Max. Temp.:
150 Degrees F
Enclosed Reel:
No
Reel Inlet:
1/2 in NPT(F)
Drive Type:
Spring Return
Features:
Side Mounted Reel, Compact Space Saving Design
Reel Width:
5 13/16 in
Length:
13 7/8 in
Hose Outside Dia.:
5/8 in
Height:
15 1/4 in
Weight:
36 lb
Speed Limited Retraction:
No
Swivel Inlet Thread Size:
3/8 in - 18
Mount Hole Diameter:
1/2 in
Includes Hose:
Yes
Hose Color:
Red
Hose Fitting B Size:
1/4 in
Swivel Inlet Size:
3/8 in
Twin Hose Compatible:
No
Hose Cover Material:
PVC
Swivel Outlet Thread Size:
1/4 in - 18
For Dual Hose:
No
Hose Fitting A Material:
Brass
Swivel Outlet Size:
1/4 in
Hose Fitting B Type:
NPT
Hose Reel Type:
Wall Mount Hose Reel
Hose Capacity:
50 ft (3/8 in I.D.)
Hose Fitting A Type:
NPT
Mount Base Height:
17 7/8 in
Maximum Operating Temperature:
150 Degrees F
Swivel Outlet Type:
NPT
Reel Material:
Carbon Steel
Corrosion-Resistant:
Yes
Latch Type:
Spring Loaded
Includes Hose Stop:
Yes
Number of Mount Holes:
4
Hose Tube Material:
PVC
Fitting Size:
1/4 in x 1/4 in
Minimum Operating Temperature:
32 Degrees F
Hose Reel Primary Application:
Air, Water
Swivel Inlet Gender:
Female
Base Motion Type:
Stationary
Spiral Hose Guard:
No
Bearing Construction:
Permanently Lubricated
Pedestal Type:
Single Pedestal
Hose Fitting B Material:
Brass
Hose Fitting B Gender:
Male
Hose End Configuration:
1/4 in MNPT
Mount Base Width:
4 3/4 in
Swivel Inlet Type:
NPT
Overall Dimensions:
16 1/2 in L x 5 13/16 in W x 17 7/8 in H
Reel Finish:
Powder Coated
Hose Fitting A Gender:
Male
Reel Diameter:
7 in
Mounting Hole Center to Center Width:
1 1/4 in
Mounting Hole Center to Center Height:
15 7/8 in
Includes Leader Hose:
No
Swivel Outlet Gender:
Male
Hose Fitting A Size:
1/4 in
Maximum Operating Pressure:
300 psi
Fitting Type:
NPT x NPT
Reel Color:
Red
Enclosed:
No
Fasteners Included:
No
Number of Guide Arms:
Single Arm
Type:
Premium Industrial
Package Quantity:
1
