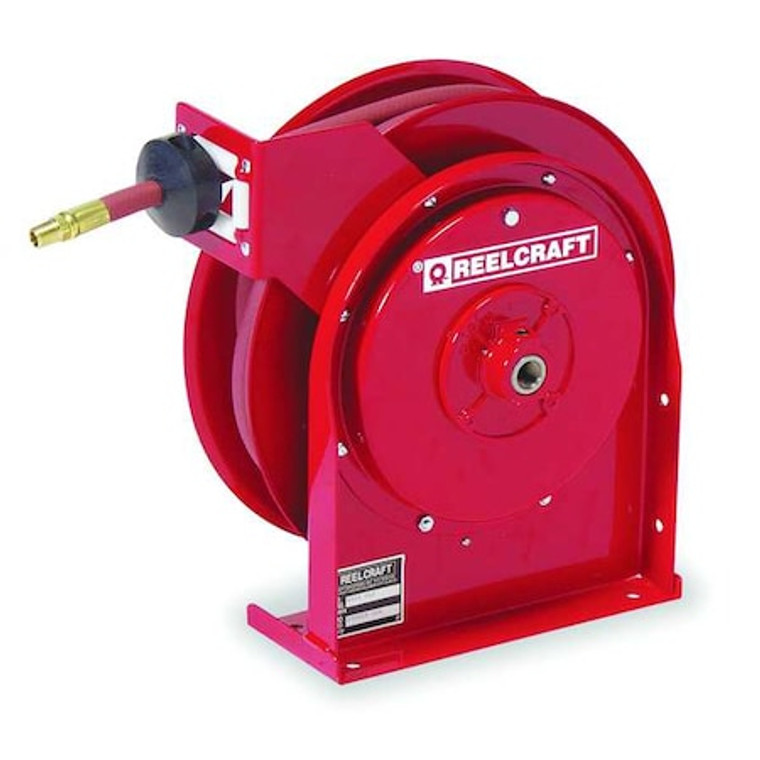

Spring Return Hose Reel, 3/8 in Hose Dia., 35 ft Length, 300 psi - 5635 OLP

Spring Return Hose Reel, 3/8 in Hose Dia., 35 ft Length, 300 psi - 5635 OLP

Reelcraft
SKU:
5635 OLP
|
UPC:
699567009672
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 35 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 35 ft, Reel Material Carbon Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 14 3/8 in, Overall Length 14 1/4 in, Overall Width 6 1/8 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material PVC, Hose Fitting A Gender Male
Additional Information
Country of Origin:
United States
Duty Rating:
Heavy Duty
Finish - Hose Reels:
Powder Coated
Hose Included:
Yes
Hose Inside Dia.:
3/8 in
Hose Length:
35 ft
Housing Material:
Steel
Max. Pressure:
300 psi
Media - Hose Reels:
Air, Water
Mounting:
Ceiling or Truck, Floor, Wall
Overall Length:
14 1/4 in
Overall Width:
6 1/8 in
Hose Material:
PVC
Enclosed Reel:
No
Bearings:
Permanently Lubricated
Item:
Spring Return Hose Reel
Seal Type:
Nitrile
Hose Ends:
1/4 in (M)NPT
Swivel Material:
Brass
Max. Temp.:
150 Degrees F
Reel Inlet:
3/8 in (F)NPT
Latch:
Quiet Latch
Includes:
Hose; Bumper
Overall Height:
14 3/8 in
Hose Outlet:
1/4 in (M)NPT
Drive Type - Hose Reels:
Spring Return
Drive Type:
Spring Return
Features:
Premium Duty Hose Reel
Reel Width:
6 1/8 in
Hose Outside Dia.:
5/8 in
Maximum Operating Temperature:
150 Degrees F
Swivel Outlet Size:
3/4 in
Swivel Outlet Gender:
Male
Hose Reel Primary Application:
Air, Water
Number of Guide Arms:
Single Arm
Maximum Operating Pressure:
300 psi
Hose Reel Type:
Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Mount Base Height:
11 19/32 in
Swivel Outlet Thread Size:
3/4 in - 14
Includes Hose Stop:
Yes
Hose Fitting B Material:
Brass
Hose Fitting B Type:
NPT
Pedestal Type:
Single Pedestal
Hose Fitting A Size:
1/4 in
Mount Base Width:
4 in
Hose Color:
Red
Reel Diameter:
7 in
Base Motion Type:
Stationary
Hose Fitting A Material:
Brass
Mounting Hole Center to Center Width:
2 1/2 in
Swivel Outlet Type:
NPT
Hose Cover Material:
PVC
Includes Leader Hose:
No
Bearing Construction:
Permanently Lubricated
Fitting Type:
NPT x NPT
Reel Finish:
Powder Coated
Twin Hose Compatible:
No
Weight:
25 lb
Fitting Size:
1/4 in x 1/4 in
Hose Capacity:
35 ft (3/8 in I.D.)
Spiral Hose Guard:
No
Swivel Inlet Thread Size:
1/4 in - 18
Swivel Inlet Size:
1/4 in
Minimum Operating Temperature:
32 Degrees F
Hose End Configuration:
1/4 in MNPT
Number of Mount Holes:
4
Fasteners Included:
No
Reel Color:
Red
Reel Material:
Carbon Steel
Hose Fitting A Gender:
Male
Hose Fitting A Type:
NPT
Swivel Inlet Gender:
Female
Includes Hose:
Yes
Hose Fitting B Size:
1/4 in
Enclosed:
No
Overall Dimensions:
14 1/4 in L x 6 1/8 in W x 14 3/8 in H
Hose Tube Material:
PVC
Swivel Inlet Type:
NPT
Mounting Hole Center to Center Height:
9 3/4 in
Speed Limited Retraction:
No
Latch Type:
Spring Loaded
For Dual Hose:
No
Mount Hole Diameter:
5/16 in
Hose Fitting B Gender:
Male
Corrosion-Resistant:
Yes
Package Quantity:
1
