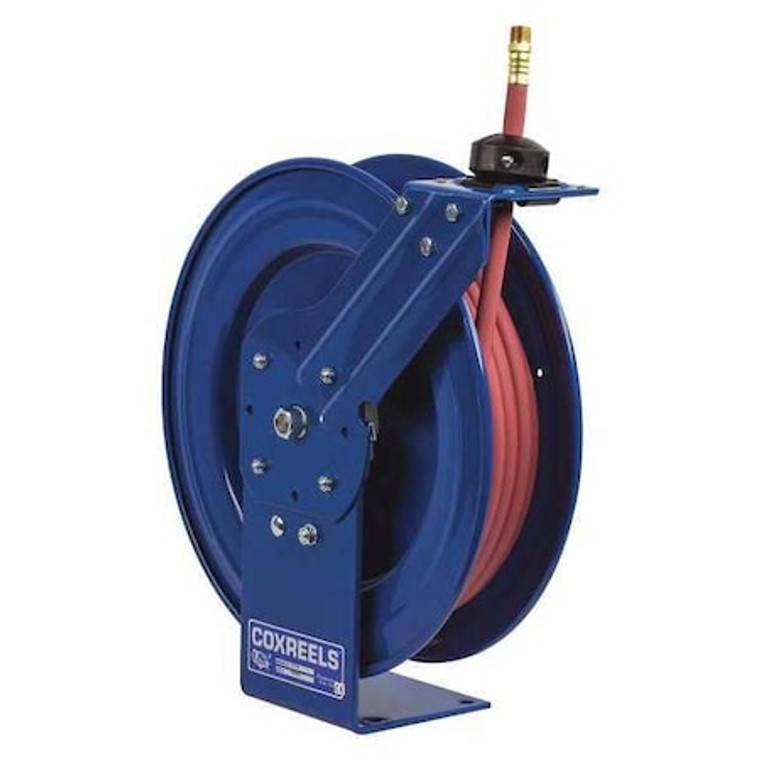

Spring Return Hose Reel, 3/8" Hose Dia., 50 ft. Length, 300 psi - P-LP-350

Spring Return Hose Reel, 3/8" Hose Dia., 50 ft. Length, 300 psi - P-LP-350

Coxreels
SKU:
P-LP-350
|
UPC:
674255718333
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 18 5/8 in, Overall Length 17 1/8 in, Overall Width 6 3/4 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Red, Hose Cover Material PVC, Hose Fitting A Gender Male
Additional Information
Country of Origin:
United States
Duty Rating:
Heavy Duty
Finish - Hose Reels:
Powder Coated
Hose Included:
Yes
Hose Inside Dia.:
3/8 in
Hose Length:
50 ft
Housing Material:
Steel
Max. Pressure:
300 psi
Media - Hose Reels:
Air, Water
Mounting:
Floor, Wall, Ceiling and Vehicles
Overall Length:
17 1/8 in
Overall Width:
6 3/4 in
Application:
Air/Water Services, Pneumatic Tools, Lubrication, Chemical Fluid Transfer, General Industrial, Manufacturing Plants & Facilities, Maintenance Repair & Operations, Automotive & Fleet Service Centers
Item:
Spring Return Hose Reel
Drive Type:
Spring Return
Swivel Material:
Brass
Includes:
Hose, Hose Guard, Hose Stop
Hose Material:
PVC
Bearings:
Permanently Lubricated
Overall Height:
18 5/8 in
Reel Inlet:
3/8 (F)NPT"
Seal Type:
Nitrile
Hose Outlet:
3/8 in (M)NPT
Max. Temp.:
150 Degrees F
Hose Ends:
3/8 (M)NPT"
Enclosed Reel:
No
Reel Width:
6 3/4 in
Hose Outside Dia.:
5/8 in
Features:
1 Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting CPC Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non
Hose End Configuration:
3/8 in MNPT
Reel Diameter:
17 1/8 in
Hose Reel Type:
Wall Mount Hose Reel
Reel Color:
Blue
Swivel Outlet Size:
3/8 in
Hose Fitting A Type:
NPT
Bearing Construction:
Permanently Lubricated
For Dual Hose:
No
Swivel Outlet Type:
NPT
Speed Limited Retraction:
No
Hose Reel Primary Application:
Air, Water
Hose Cover Material:
PVC
Includes Hose:
Yes
Overall Dimensions:
17 1/8 in L x 6 3/4 in W x 18 5/8 in H
Reel Material:
Steel
Swivel Outlet Gender:
Male
Mount Base Width:
6 in
Minimum Operating Temperature:
-15 Degrees F
Hose Capacity:
50 ft (3/8 in I.D.)
Fasteners Included:
No
Hose Fitting A Size:
3/8 in
Number of Guide Arms:
Single Arm
Swivel Inlet Thread Size:
3/8 in - 18
Pedestal Type:
Single Pedestal
Includes Leader Hose:
No
Swivel Inlet Gender:
Female
Hose Color:
Red
Mounting Hole Center to Center Height:
5 in
Twin Hose Compatible:
No
Reel Finish:
Powder Coated
Swivel Inlet Type:
NPT
Standards:
CE
Includes Hose Stop:
Yes
Spiral Hose Guard:
No
Swivel Inlet Size:
3/8 in
Mount Base Height:
6 in
Hose Fitting B Material:
Brass
Hose Fitting B Type:
NPT
Corrosion-Resistant:
Yes
Hose Tube Material:
PVC
Base Motion Type:
Stationary
Mount Hole Diameter:
1/2 in
Maximum Operating Pressure:
300 psi
Number of Mount Holes:
4
Hose Fitting A Gender:
Male
Latch Type:
Locking
Mounting Hole Center to Center Width:
4 in
Enclosed:
No
Hose Fitting B Size:
3/8 in
Weight:
43 lb
Swivel Outlet Thread Size:
3/8 in - 18
Hose Fitting B Gender:
Male
Maximum Operating Temperature:
150 Degrees F
Hose Fitting A Material:
Brass
Fitting Type:
NPT x NPT
Fitting Size:
3/8 in x 3/8 in
Package Quantity:
1
