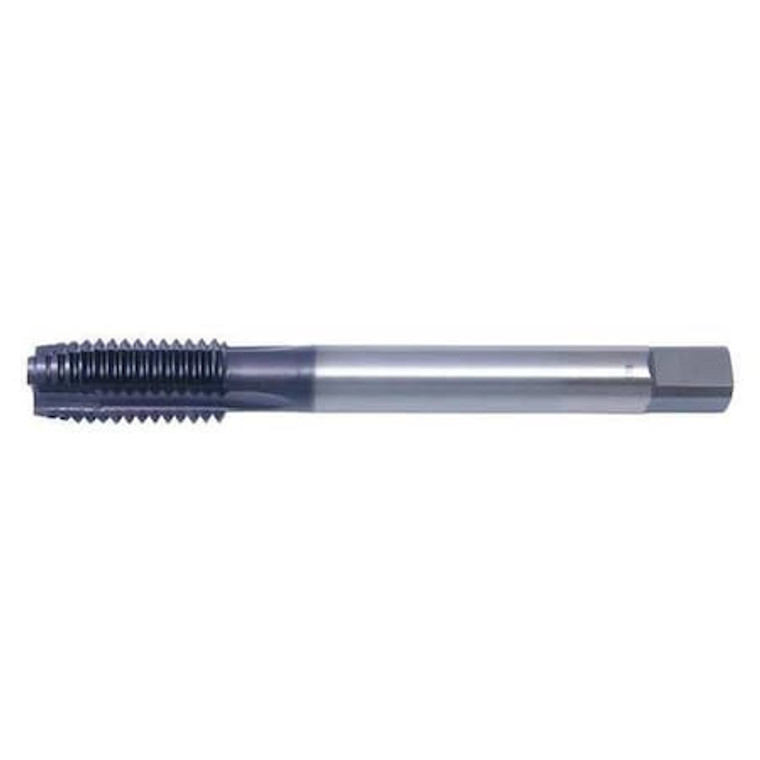

Spiral Point Tap, Plug, 3 - C86147

Spiral Point Tap, Plug, 3 - C86147

Cleveland
SKU:
C86147
|
UPC:
697334917458
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Spiral Point Tap, Thread Size M14x2, Metric Coarse, Overall Length 110.00 mm, HSS-E, TiAlN, Right Hand, Thread Length 45.01 mm, 75 Percent Thread Drill Size 12.00 mm, Thread Limit 6H, Class of Fit 6H, Number of Flutes 3
Additional Information
Country of Origin:
United States
Item:
Spiral Point Tap
Shank Dia.:
10.90mm
Tap Thread Size:
M14-2
Tap Material:
Cobalt
Tap Chamfer:
Plug
Tap Style:
Spiral Point
Tap Thread Type:
Metric Coarse
Tap Size:
M14
Number of Flutes:
3
Tap Dimension Type:
Metric
Overall Length:
110.00mm
Tap Grouping:
Tap
Pitch Diameter Limit:
Not Rated
Tap Finish:
TiAlN
Standards:
DIN/ANSI
List Number:
PRO-861SP
Number of Pieces:
1
Thread Length:
26.00mm
Thread Direction:
Right Hand
Cutting Direction - Machining:
Right Hand
Size:
M14
Series:
PRO-861SP
Thread Standard:
Metric Coarse
Secondary Material Application ISO Code:
K, M, P
Drill Bit Size:
12.00 mm
Extended Neck:
Yes
Secondary Material Application:
Cast Iron, Stainless Steel, Steel
Thread Size:
M14x2
55% Thread Drill Size:
12.50 mm
Primary Material Application ISO Code:
H, K, N, P
Thread Pitch:
2.00 mm
Spiral Direction:
Neutral
Tap Length Standard:
DIN
75% Thread Drill Size:
12.00 mm
Tap Shank Standard:
ANSI
65% Thread Drill Size:
31/64 in
Square Size:
8.18 mm
Thread Limit:
6H
Shank Length:
65.00 mm
Measurement System:
Metric
Shank Type - Machining:
Straight
Primary Material Application:
Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel
Class of Fit:
6H
Helix Angle:
0 Degrees
Package Quantity:
1
