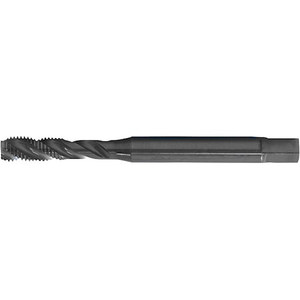

Spiral Flute Tap Semi-Bottoming, 4 Flutes - C89350

Spiral Flute Tap Semi-Bottoming, 4 Flutes - C89350

Cleveland
SKU:
C89350
|
UPC:
697334919049
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Spiral Flute Tap, Thread Size M18x1.5, Metric Fine, Overall Length 125.00 mm, Cobalt, Black Oxide, Thread Length 54.99 mm, 75 Percent Thread Drill Size 16.50mm, Thread Limit 6H, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Spiral Flute Tap
Overall Length:
125.00mm
Tap Thread Size:
M18-1.50
Tap Chamfer:
Semi-Bottoming
Tap Material:
Cobalt
Tap Thread Type:
Metric Fine
Shank Dia.:
9.32mm
Number of Flutes:
4
Tap Style:
Spiral Flute
Tap Finish:
Steam Oxide
Tap Size:
M18
Tap Dimension Type:
Metric
Tap Grouping:
Tap
Thread Length:
29.00mm
Standards:
DIN/ANSI
Pitch Diameter Limit:
Not Rated
Number of Pieces:
1
List Number:
PER-893SF
Thread Direction:
Right Hand
Cutting Direction - Machining:
Right Hand
Series:
PER-893SF
Size:
M18
Secondary Material Application ISO Code:
K, M, P
Tap Length Standard:
DIN
Thread Standard:
Metric Fine
Shank Type - Machining:
Straight
Thread Limit:
6H
Measurement System:
Metric
Helix Angle:
38 Degrees
Drill Bit Size:
16.50mm
55% Thread Drill Size:
16.90 mm
75% Thread Drill Size:
16.50mm
Shank Length:
70.00 mm
Secondary Material Application:
Cast Iron, Stainless Steel, Steel
65% Thread Drill Size:
21/32 in
Extended Neck:
Yes
Thread Pitch:
1.50mm
Tap Shank Standard:
ASME, DIN
Spiral Direction:
Right Hand
Thread Size:
M18x1.5
Square Size:
10.31mm
Class of Fit:
6H
Package Quantity:
1
