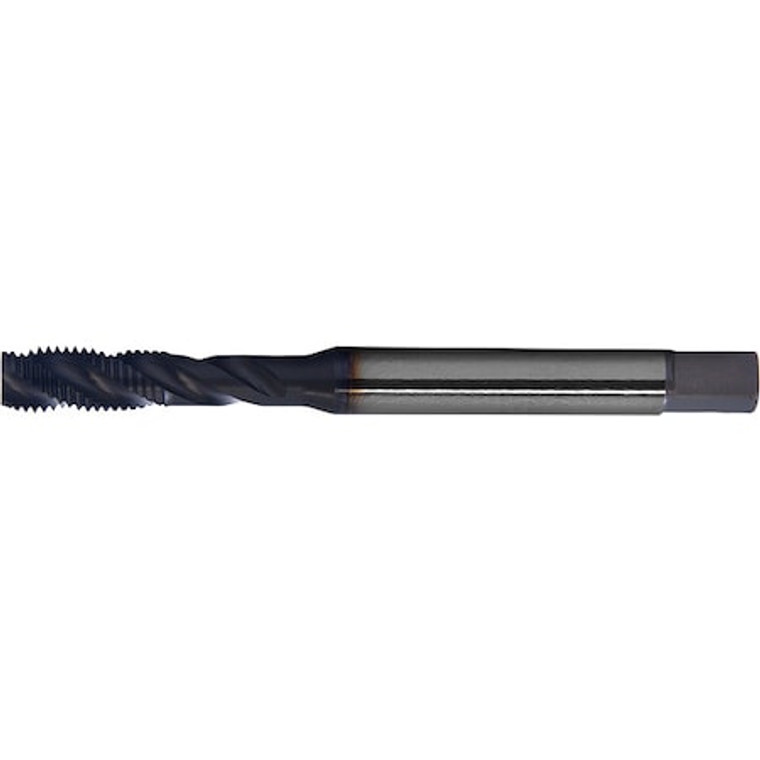

Spiral Flute Tap Semi-Bottoming, 4 Flutes - C89249

Spiral Flute Tap Semi-Bottoming, 4 Flutes - C89249

Cleveland
SKU:
C89249
|
UPC:
697334918493
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Spiral Flute Tap, Thread Size M16x2.0, Metric Coarse, Overall Length 110.00 mm, Cobalt, TiAlN, Thread Length 53.01 mm, 75 Percent Thread Drill Size 14.00mm, Thread Limit 6H, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 4
Additional Information
Country of Origin:
United States
Item:
Spiral Flute Tap
Overall Length:
110.00mm
Tap Thread Size:
M16-2.00
Tap Chamfer:
Semi-Bottoming
Tap Thread Type:
Metric Coarse
Tap Material:
Cobalt
Number of Flutes:
4
Shank Dia.:
10.90mm
Tap Style:
Spiral Flute
Tap Finish:
TiAlN
Tap Size:
M16
Tap Dimension Type:
Metric
List Number:
PRO-892SF
Thread Direction:
Right Hand
Thread Length:
26.00mm
Number of Pieces:
1
Tap Grouping:
Tap
Pitch Diameter Limit:
Not Rated
Standards:
DIN/ANSI
Cutting Direction - Machining:
Right Hand
Size:
M16
Series:
PRO-892SF
Features:
Helix Angle 38 Degrees , Tap Chamfer Semi-Bottoming
Square Size:
9.14mm
65% Thread Drill Size:
9/16 in
55% Thread Drill Size:
14.50 mm
Material Grade - Machining:
Vanadium High Speed Steel
Thread Standard:
Metric Coarse
Tap Length Standard:
DIN
Shank Type - Machining:
Straight
Drill Bit Size:
14.00mm
Shank Length:
57.00 mm
Thread Pitch:
2.00mm
Measurement System:
Metric
Primary Material Application:
Aluminum, Brass, Bronze, Copper, Hardened Steel, Stainless Steel, Steel
Thread Size:
M16x2.0
Spiral Direction:
Right Hand
Thread Limit:
6H
Extended Neck:
Yes
75% Thread Drill Size:
14.00mm
Primary Material Application ISO Code:
H, M, N, P
Helix Angle:
38 Degrees
Tap Shank Standard:
ANSI, DIN
Class of Fit:
6H
Package Quantity:
1
