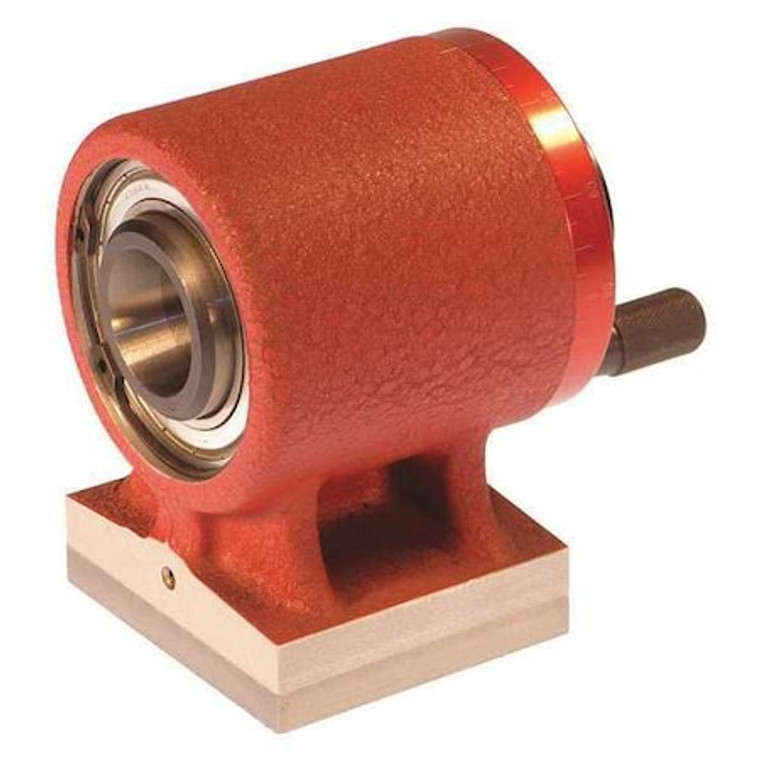

Spin Index Fixture, 5-9/16inH, 6-13/32inL - CM-5C

Spin Index Fixture, 5-9/16inH, 6-13/32inL - CM-5C

Suburban
SKU:
CM-5C
|
UPC:
662619001146
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Spin Index Fixture, Collet Capacity All 5C Collets, Through Hole Dia. 1-1/4 In., Height to Spindle Centerline 3-5/8 In., Overall Length 6-13/32 In., Overall Width 4-13/32 In., Base Length 3-13/32 In., Base Width 3-3/4 In., Overall Height 5-9/16 In., Number of Indexing Positions 48
Additional Information
Country of Origin:
United States
Item:
Collet Master Index Fixture
Collet Capacity:
All 5C Collets
Through Hole Dia.:
1-1/4";Height to Spindle Centerline=3-5/8""
Overall Length:
6.41 in
Overall Width:
4.41 in
Base Length:
3 13/32 in
Base Width:
3 3/4 in
Overall Height:
5.563 in
Hard Stop Spacing:
7-1/2 Degrees
Number of Indexing Positions:
48
Parallelism:
0.0002 in
Includes:
Drawbar, Wooden Case
Squareness:
0.0002 in
Max. Spindle Runout:
0.00010";Features=Maximum Spindle Runout"
Number of Positions:
48
Compatible Collet Series:
5C
Tailstock Diameter - Maximum:
Not Applicable
Through Hole Diameter:
1 1/4 in
T.I.R. Tolerance:
0.0001 in
Compatible Collet Size - Maximum:
1.125 in
Index Increments:
7 1/2 Degrees
Compatible Collet Size - Minimum:
0.063 in
Tailstock Length - Maximum:
Not Applicable
Centerline Height - Maximum:
3 5/8 in
Package Quantity:
1
