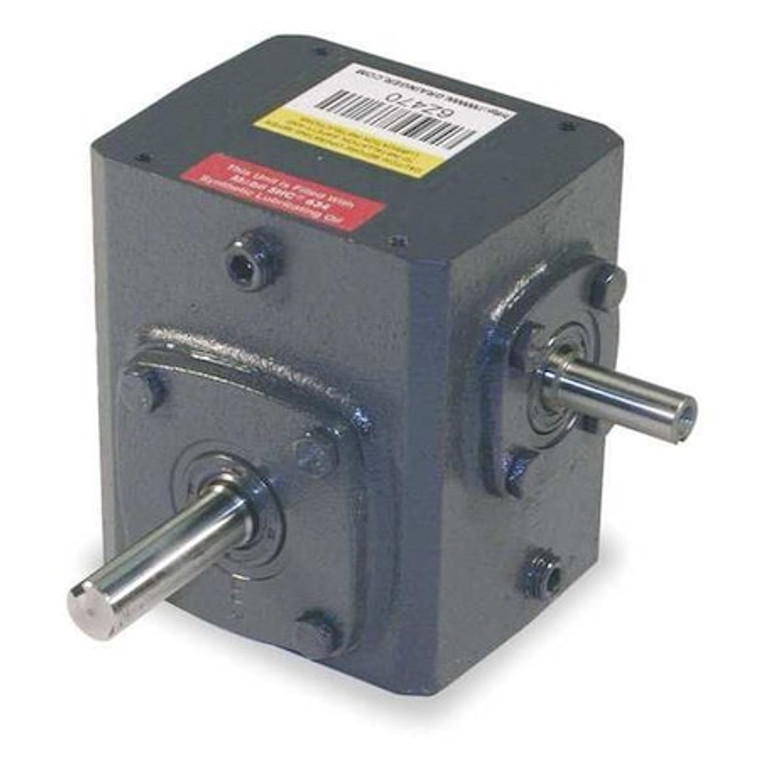

Speed Reducer, Indirect Drive, 60:1 - 6Z441
Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 29 RPM, Worm Center Distance 2.06 in, Gear Ratio 60:1, Rotation CW/CCW, Maximum Input Horsepower 0.5 hp, Maximum Output Torque 636 in-lb, Overhung Load Capacity 875 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller, Gear Material Hardened Steel, Manganese Bronze
- Country of Origin:
- United States
- Item:
- Speed Reducer
- Nominal Ratio:
- 60
- Input RPM:
- 1750 rpm
- Standards:
- AGMA
- Output Shaft Dia.:
- 1 in
- Number of Stages:
- 1
- Worm Gear Material:
- Bronze
- Speed Reducer Type:
- Indirect Drive
- Single/Double Output/Universal:
- Single Output
- Seal Type:
- Double Lip
- Output Torque @ 1/4 HP:
- 305 in-lb
- Bearings:
- Ball
- Finish:
- Powdered Epoxy Paint
- Pinion Material:
- Hardened Steel
- Housing Material:
- Cast Iron
- Dimension U:
- 1 in
- Gear Type:
- Worm
- Shaft Orientation:
- Right Angle
- Max. Input HP:
- 0.5 hp
- Output Torque @ 1/2 HP:
- 636 in-lb
- Max. Output Torque:
- 636 in-lb
- Gear Material:
- Hardened Steel, Manganese Bronze
- Output Torque @ 1/40 HP:
- 3600
- Overhung Load:
- 875 lb
- Duty:
- Standard
- Solid/Hollow Output Shaft:
- Solid
- Reducer Model No.:
- 83985
- Worm Center Distance:
- 2.06 in
- Output Torque @ 3/4 HP:
- 636 in.-lb.
- Output Torque @ 1/3 HP:
- 423 in-lb
- Rotation:
- CW/CCW
- Lubrication:
- Klubersynth UH1 6-460
- Application:
- Speed Reducer
- Output Shaft Diameter:
- 1 in
- Overhung Load Capacity:
- 875 ft-lb
- Gear Ratio:
- 60
- Mounting Orientation:
- Any Angle
- Input Connection Type:
- Indirect Drive
- Maximum Output Speed:
- 29 RPM
- Bearing Type:
- Ball, Tapered Roller
- Output Shaft Type:
- Keyed
- Housing Material Finish:
- Powder Coated Epoxy Paint
- Maximum Output Torque:
- 636 in-lb
- Maximum Input Horsepower:
- 0.5 hp
- Maximum Input Speed:
- 1,750 RPM
- Package Quantity:
- 1
