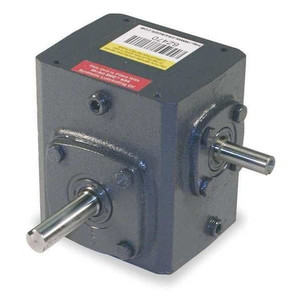

Speed Reducer, Indirect Drive, 18:1 - 2Z309
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Speed Reducer, Indirect Drive, 18:1 - 2Z309
Speed Reducer, Input Connection Type Indirect Drive, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 96 RPM, Worm Center Distance 2.06 in, Gear Ratio 18:1, Rotation CW/CCW, Maximum Input Horsepower 1 hp, Maximum Output Torque 360 in-lb, Overhung Load Capacity 600 ft-lb, Housing Material Cast Aluminum, Application Speed Reducer, Bearing Type Tapered Roller, Gear Material Hardened and Ground Steel, Housing Material Finish Powder Coated Epoxy Paint
- Country of Origin:
- United States
- Item:
- Speed Reducer
- Nominal Ratio:
- 18
- Input RPM:
- 1750 RPM
- Standards:
- AGMA
- Reducer Model No.:
- 84259
- Finish:
- Powdered Epoxy Paint
- Output Torque @ 1.5 HP:
- 360 in.-lb.
- Output Torque @ 1/4 HP:
- 84 in-lb
- Worm Gear Material:
- Bronze
- Number of Stages:
- 1
- Output Torque @ 1/8 HP:
- 41 in-lb
- Gear Type:
- Worm
- Output Torque @ 3/4 HP:
- 243 in-lb
- Gear Material:
- Hardened and Ground Steel
- Housing Material:
- Cast Aluminum
- Worm Center Distance:
- 2.06 in
- Output Torque @ 1/3 HP:
- 108 in-lb
- Dimension U:
- 1 in
- Overhung Load:
- 600 lb
- Max. Input HP:
- 1 hp
- Max. Output Torque:
- 360 in-lb
- Seal Type:
- Double Lip
- Output Torque @ 1/6 HP:
- 54 in-lb
- Output Torque @ 1/2 HP:
- 162 in-lb
- Rotation:
- CW/CCW
- Duty:
- Standard
- Lubrication:
- Klubersynth UH1 6-460
- Shaft Orientation:
- Right Angle
- Pinion Material:
- Hardened Steel
- Bearings:
- Tapered Roller
- Solid/Hollow Output Shaft:
- Solid
- Output Torque @ 1 HP:
- 360 in-lb
- Single/Double Output/Universal:
- Single Output
- Output Torque @ 1/40 HP:
- 3600 in.-lb.
- Speed Reducer Type:
- Indirect Drive
- Output Shaft Dia.:
- 3/4 in
- Application:
- Speed Reducer
- Maximum Output Speed:
- 96 RPM
- Housing Material Finish:
- Powder Coated Epoxy Paint
- Maximum Input Speed:
- 1,750 RPM
- Overhung Load Capacity:
- 600 ft-lb
- Maximum Output Torque:
- 360 in-lb
- Bearing Type:
- Tapered Roller
- Output Shaft Diameter:
- 3/4 in
- Maximum Input Horsepower:
- 1 hp
- Gear Ratio:
- 18
- Output Shaft Type:
- Round
- Input Connection Type:
- Indirect Drive
- Package Quantity:
- 1
