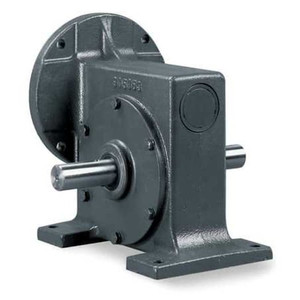

Speed Reducer, C-Face, 56C, 50:1 - 4Z731
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Speed Reducer, C-Face, 56C, 50:1 - 4Z731
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 35 RPM, Motor Frame Designation 56C, Worm Center Distance 2.62 in, Gear Ratio 50:1, Rotation CW/CCW, Maximum Input Horsepower 0.75 hp, Maximum Output Torque 895 in-lb, Overhung Load Capacity 1,200 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller, Gear Material Hardened Steel, Manganese Bronze
- Country of Origin:
- United States
- Item:
- Speed Reducer
- Nominal Ratio:
- 50
- Input RPM:
- 1750 rpm
- Bore Dia.:
- 5/8";Nominal Output RPM=35 RPM"
- Standards:
- AGMA
- Max. Output Torque:
- 895 in-lb
- Worm Gear Material:
- Bronze
- Mounting:
- Any Position Except Input Motor Shaft Up
- Output Shaft Dia.:
- 1 1/4 in
- Lubrication:
- Klubersynth UH1 6-460
- Pinion Material:
- Hardened Steel
- Gear Material:
- Hardened Steel, Manganese Bronze
- Output Torque @ 3/4 HP:
- 572 in-lb
- Reducer Model No.:
- 83999
- Finish:
- Powdered Epoxy Paint
- Solid/Hollow Output Shaft:
- Solid
- Output Torque @ 1/2 HP:
- 356 in-lb
- Number of Stages:
- 1
- Duty:
- Standard
- Bearings:
- Ball
- Seal Type:
- Double Lip
- Worm Center Distance:
- 2.62 in
- Output Torque @ 1 HP:
- 895 in-lb
- Rotation:
- CW/CCW
- Frame:
- 56c
- Dimension U:
- 1 1/4 in
- Overhung Load:
- 1,300 lb
- Speed Reducer Type:
- C-Face
- Gear Type:
- Worm
- Output Torque @ 1/40 HP:
- 3600 in.-lb.
- Shaft Orientation:
- Right Angle
- Max. Input HP:
- 0.75 hp
- Single/Double Output/Universal:
- Single Output
- Housing Material:
- Cast Iron
- Application:
- Speed Reducer
- Nominal Output rpm:
- 35 rpm
- Input Connection Type:
- C-Face
- Maximum Input Speed:
- 1,750 RPM
- Mounting Orientation:
- Any Angle
- Gear Ratio:
- 50
- Maximum Output Torque:
- 895 in-lb
- Motor Frame Designation:
- 56C
- Housing Material Finish:
- Powdered Epoxy Paint
- Bearing Type:
- Ball, Tapered Roller
- Maximum Output Speed:
- 35 RPM
- Output Shaft Diameter:
- 1 1/4 in
- Output Shaft Type:
- Keyed
- Input Shaft Diameter:
- 5/8 in
- Overhung Load Capacity:
- 1,200 ft-lb
- Maximum Input Horsepower:
- 0.75 hp
- Package Quantity:
- 1
