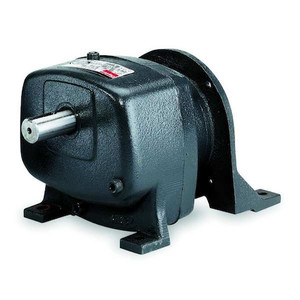

Speed Reducer, C-Face, 56C, 39:1 - 2Z933
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Speed Reducer, C-Face, 56C, 39:1 - 2Z933
Speed Reducer, Input Connection Type C-Face, Gear Type Helical, Maximum Output Speed 44 RPM, Motor Frame Designation 56C, Base to Center 4.88 in, Gear Ratio 39:1, Rotation CW/CCW, Maximum Input Horsepower 0.5 hp, Maximum Output Torque 651 in-lb, Overhung Load Capacity 660 ft-lb, Mounting Orientation Horizontal, Application Speed Reducer, Bearing Type Ball, Maximum Input Speed 1,750 RPM, Gear Material Hardened and Ground Steel
- Country of Origin:
- United States
- Item:
- Speed Reducer
- Nominal Ratio:
- 39
- Input RPM:
- 1750 rpm
- Bore Dia.:
- 5/8";Nominal Output RPM=44 RPM"
- Standards:
- AGMA
- Output Torque @ 3/4 HP:
- 651 in.-lb.
- Output Shaft Dia.:
- 1 in
- Reducer Model No.:
- 84379
- Dimension U:
- 1 in
- Speed Reducer Type:
- C-Face
- Rotation:
- CW/CCW
- Gear Material:
- Hardened and Ground Steel
- Output Shaft Height:
- 4 7/8 in
- Seal Type:
- Double Lip
- Frame:
- 56c
- Output Torque @ 1/2 HP:
- 651 in-lb
- Overhung Load:
- 660 lb
- Max. Output Torque:
- 651 in-lb
- Lubrication:
- Klubersynth UH1 6-460
- Output Torque @ 1/4 HP:
- 320 in-lb
- Solid/Hollow Output Shaft:
- Solid
- Pinion Material:
- Hardened Steel
- Finish:
- Powdered Epoxy Paint
- Output Torque @ 1/3 HP:
- 435 in-lb
- Mounting:
- Horizontal
- Number of Stages:
- 1
- Duty:
- Standard
- Shaft Orientation:
- Parallel Inline
- Housing Material:
- Cast Iron
- Bearings:
- Ball
- Gear Type:
- Helical
- Single/Double Output/Universal:
- Single Output
- Output Torque @ 1/40 HP:
- 3600 in.-lb.
- Max. Input HP:
- 0.5 hp
- Application:
- Speed Reducer
- Nominal Output rpm:
- 44 rpm
- Maximum Input Speed:
- 1,750 RPM
- Base to Center:
- 4.88 in
- Maximum Output Torque:
- 651 in-lb
- Overhung Load Capacity:
- 660 ft-lb
- Maximum Input Horsepower:
- 0.5 hp
- Motor Frame Designation:
- 56C
- Mounting Orientation:
- Horizontal
- Maximum Output Speed:
- 44 RPM
- Output Shaft Diameter:
- 1 in
- Housing Material Finish:
- Powder Coated Epoxy Paint
- Gear Ratio:
- 39
- Bearing Type:
- Ball
- Input Connection Type:
- C-Face
- Package Quantity:
- 1
