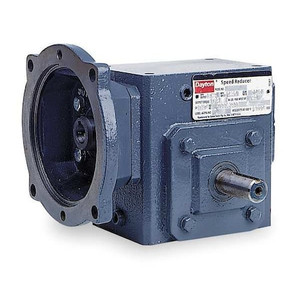

Speed Reducer, C-Face, 56C, 30:1 - 4Z017
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Speed Reducer, C-Face, 56C, 30:1 - 4Z017
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 58 RPM, Motor Frame Designation 56C, Worm Center Distance 3.25 in, Gear Ratio 30:1, Rotation CW/CCW, Maximum Input Horsepower 2 hp, Maximum Output Torque 1689 in-lb, Overhung Load Capacity 1,500 ft-lb, Mounting Orientation Any Position Except Input Motor Shaft Up, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller
- Country of Origin:
- United States
- Item:
- Speed Reducer
- Nominal Ratio:
- 30
- Input RPM:
- 1750 rpm
- Bore Dia.:
- 5/8";Nominal Output RPM=58 RPM"
- Standards:
- AGMA
- Housing Material:
- Cast Iron
- Reducer Model No.:
- 84111
- Duty:
- Standard
- Mounting:
- Any Position Except Input Motor Shaft Up
- Output Torque @ 1.5 HP:
- 1,247 in-lb
- Bearings:
- Ball
- Output Torque @ 1/40 HP:
- 3600 in.-lb.
- Rotation:
- CW/CCW
- Output Torque @ 1 HP:
- 805 in-lb
- Shaft Orientation:
- Right Angle
- Single/Double Output/Universal:
- Double Output
- Output Shaft Dia.:
- 1 1/2 in
- Output Torque @ 2 HP:
- 1,689 in-lb
- Frame:
- 56c
- Number of Stages:
- 1
- Pinion Material:
- Hardened Steel
- Solid/Hollow Output Shaft:
- Solid
- Gear Type:
- Worm
- Max. Input HP:
- 2 hp
- Max. Output Torque:
- 1,689 in-lb
- Overhung Load:
- 1,500 lb
- Lubrication:
- Klubersynth UH1 6-460
- Output Torque @ 3 HP:
- 1689 in.-lb.
- Finish:
- Powdered Epoxy Paint
- Worm Center Distance:
- 3.25 in
- Gear Material:
- Hardened Steel, Manganese Bronze
- Worm Gear Material:
- Bronze
- Dimension U:
- 1 1/2 in
- Speed Reducer Type:
- C-Face
- Seal Type:
- Double Lip
- Application:
- Speed Reducer
- Nominal Output rpm:
- 58 rpm
- Maximum Output Torque:
- 1689 in-lb
- Gear Ratio:
- 30
- Input Connection Type:
- C-Face
- Maximum Input Speed:
- 1,750 RPM
- Input Shaft Diameter:
- 5/8 in
- Bearing Type:
- Ball, Tapered Roller
- Housing Material Finish:
- Powdered Epoxy Paint
- Output Shaft Type:
- Keyed
- Motor Frame Designation:
- 56C
- Mounting Orientation:
- Any Position Except Input Motor Shaft Up
- Overhung Load Capacity:
- 1,500 ft-lb
- Maximum Output Speed:
- 58 RPM
- Maximum Input Horsepower:
- 2 hp
- Output Shaft Diameter:
- 1 1/2 in
- Package Quantity:
- 1
