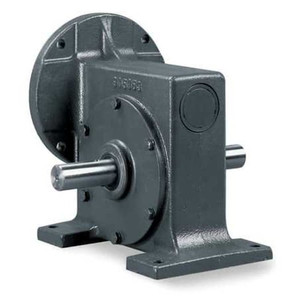

Speed Reducer, C-Face, 56C, 25:1 - F721-25-B5-G
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 70 RPM, Motor Frame Designation 56C, Worm Center Distance 2.06 in, Base to Center 2.28 in, Gear Ratio 25:1, Rotation CW/CCW, Maximum Input Horsepower 1 hp, Maximum Output Torque 702 in-lb, Overhung Load Capacity 700 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Bearing Type Tapered Roller, Gear Material Hardened and Ground Steel
- Country of Origin:
- United States
- Item:
- Speed Reducer
- Nominal Ratio:
- 25
- Input RPM:
- 1750 rpm
- Bore Dia.:
- 1";Nominal Output RPM=70 RPM"
- Overall Length:
- 9.38";Standards=AGMA Service Class II"
- Lubrication:
- Klubersynth UH1 6-460
- Output Torque @ 3/4 HP:
- 350 in-lb
- Output Shaft Height:
- 2 9/32 in
- Output Torque @ 1/40 HP:
- 3600 in.-lb.
- Overhung Load:
- 700 lb
- Housing Material:
- Cast Iron
- Max. Input HP:
- 1 hp
- Gear Type:
- Worm
- Solid/Hollow Output Shaft:
- Solid
- Pinion Material:
- Hardened Steel
- Mounting:
- Any Position
- Reducer Model No.:
- F721-25-B5-G
- Output Torque @ 1.5 HP:
- 702 in-lb
- Gear Material:
- Hardened and Ground Steel
- Base:
- Optional
- Worm Gear Material:
- Bronze
- Rotation:
- CW/CCW
- Dimension U:
- 1 in
- Output Shaft Dia.:
- 1 in
- Seal Type:
- Double Lip
- Max. Output Torque:
- 702 in-lb
- Shaft Orientation:
- Right Angle
- Output Torque @ 1 HP:
- 526 in-lb
- Number of Stages:
- 1
- Duty:
- Standard
- Finish:
- Powdered Epoxy Paint
- Worm Center Distance:
- 2.06 in
- Speed Reducer Type:
- C-Face
- Frame:
- 56c
- Single/Double Output/Universal:
- Single Output
- Bearings:
- Tapered Roller
- Nominal Output rpm:
- 70 rpm
- Maximum Input Speed:
- 1,750 RPM
- Base to Center:
- 2.28 in
- Overhung Load Capacity:
- 700 ft-lb
- Gear Ratio:
- 25
- Motor Frame Designation:
- 56C
- Output Shaft Diameter:
- 1 in
- Output Shaft Type:
- Round
- Input Shaft Diameter:
- 5/8 in
- Maximum Input Horsepower:
- 1 hp
- Mounting Orientation:
- Any Angle
- Maximum Output Torque:
- 702 in-lb
- Input Connection Type:
- C-Face
- Maximum Output Speed:
- 70 RPM
- Bearing Type:
- Tapered Roller
- Housing Material Finish:
- Powder Coated Epoxy Paint
- Package Quantity:
- 1
-
-
