Speed Reducer, C-Face, 42CZ, 20:1 - F710-20-B4-G
Boston GearLog in for pricing
(No reviews yet)
Write a Review
Boston Gear

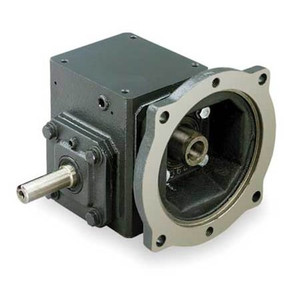

Speed Reducer, C-Face, 42CZ, 20:1 - F710-20-B4-G
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 88 RPM, Motor Frame Designation 42CZ, Worm Center Distance 1 in, Base to Center 1.31 in, Gear Ratio 20:1, Rotation CW/CCW, Maximum Input Horsepower 0.25 hp, Maximum Output Torque 130 in-lb, Overhung Load Capacity 150 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Bearing Type Tapered Roller, Gear Material Hardened and Ground Steel
- Country of Origin:
- United States
- Item:
- Speed Reducer
- Nominal Ratio:
- 20
- Input RPM:
- 1,750 RPM
- Bore Dia.:
- 1/2 in
- Nominal Output RPM:
- 88 RPM
- Standards:
- AGMA
- Output Torque @ 1/3 HP:
- 130 in-lb
- Frame:
- 42CZ
- Max. Input HP:
- 0.25 hp
- Max. Output Torque:
- 130 in-lb
- Lubrication:
- Klubersynth UH1 6-460
- Dimension U:
- 1/2 in
- Reducer Model No.:
- F710-20-B4-G
- Mounting:
- Any Position
- Worm Gear Material:
- Bronze
- Solid/Hollow Output Shaft:
- Solid
- Output Torque @ 1/4 HP:
- 98 in-lb
- Output Shaft Height:
- 1 5/16 in
- Shaft Orientation:
- Right Angle
- Seal Type:
- Double Lip
- Overhung Load:
- 150 lb
- Duty:
- Standard
- Output Torque @ 1/40 HP:
- 3600 in.-lb.
- Rotation:
- CW/CCW
- Speed Reducer Type:
- C-Face
- Single/Double Output/Universal:
- Single Output
- Finish:
- Powdered Epoxy Paint
- Housing Material:
- Cast Iron
- Number of Stages:
- 1
- Worm Center Distance:
- 1 in
- Output Shaft Dia.:
- 1/2 in
- Bearings:
- Tapered Roller
- Gear Type:
- Worm
- Pinion Material:
- Hardened Steel
- Gear Material:
- Hardened and Ground Steel
- Base:
- Optional
- Input Connection Type:
- C-Face
- Motor Frame Designation:
- 42CZ
- Base to Center:
- 1.31 in
- Maximum Output Speed:
- 88 RPM
- Maximum Input Horsepower:
- 0.25 hp
- Bearing Type:
- Tapered Roller
- Maximum Input Speed:
- 1,750 RPM
- Gear Ratio:
- 20
- Maximum Output Torque:
- 130 in-lb
- Housing Material Finish:
- Powder Coated Epoxy Paint
- Output Shaft Type:
- Round
- Mounting Orientation:
- Any Angle
- Overhung Load Capacity:
- 150 ft-lb
- Input Shaft Diameter:
- 1/2 in
- Output Shaft Diameter:
- 1/2 in
- Package Quantity:
- 1
