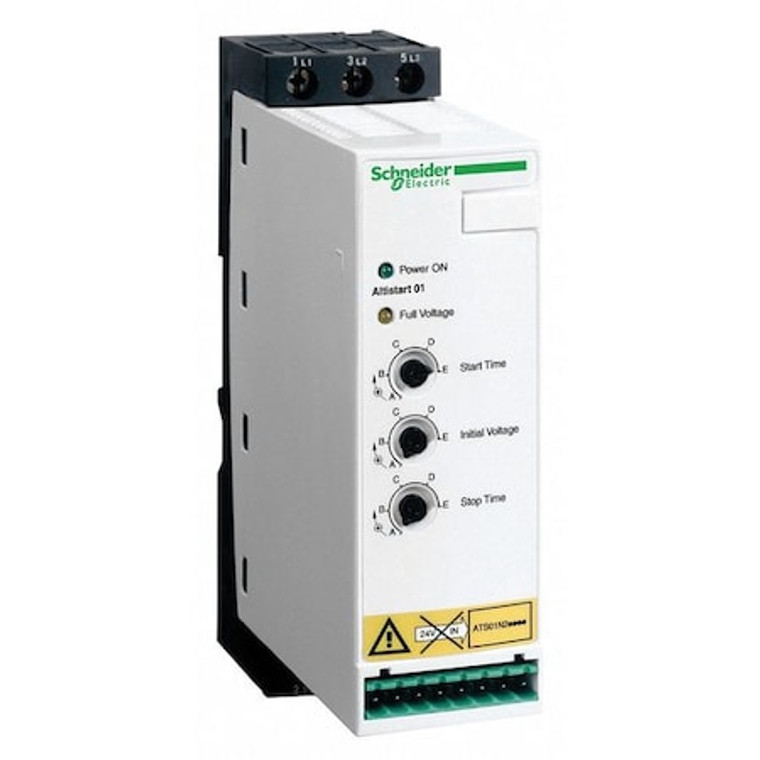

Soft Start, 460VAC, 22A, 3 Phase - ATS01N222RT

Soft Start, 460VAC, 22A, 3 Phase - ATS01N222RT

Schneider Electric
SKU:
ATS01N222RT
|
UPC:
785901870920
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Soft Start, Input Voltage 460 to 480V AC, Output Current 22 A, Output Voltage 460 to 480V AC, 10 hp @ 3 Phase, 460 to 480V AC, 15 hp @ 3 Phase, 460 to 480V AC, Control Voltage 24V DC, IP20, NEMA 1
Additional Information
Country of Origin:
Germany
Output Current:
22 A
With Bypass / No Bypass:
With Bypass
Start Type:
Voltage Ramp Start
Ramp Time:
1 to 10 sec.
Enclosure Rating:
IP20, NEMA 1
Stop Time:
1 to 10 sec
Display:
None
Height:
6.06 in
Item:
Soft Start
IP Rating:
20
Depth:
4.45 in
Input Voltage:
460 to 480V AC
Control Voltage:
24V DC
Phase:
Three
Starting Torque:
30% to 80%
Width:
1.77 in
Includes:
LED display two
Standards:
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
Output Voltage:
460 to 480V AC
HP @ 3 Phase - 480V:
10 to 15
Application:
Asynchronous Motors
HP @ 3 Phase - 460V:
10 to 15
Overall Width:
1.77 in
Frequency:
50/60 Hz
Output Power:
10 hp @ 3 Phase, 460 to 480V AC, 15 hp @ 3 Phase, 460 to 480V AC
Overall Depth:
5.16 in
Overall Height:
6.06 in
Type:
Dial Control
Package Quantity:
1
