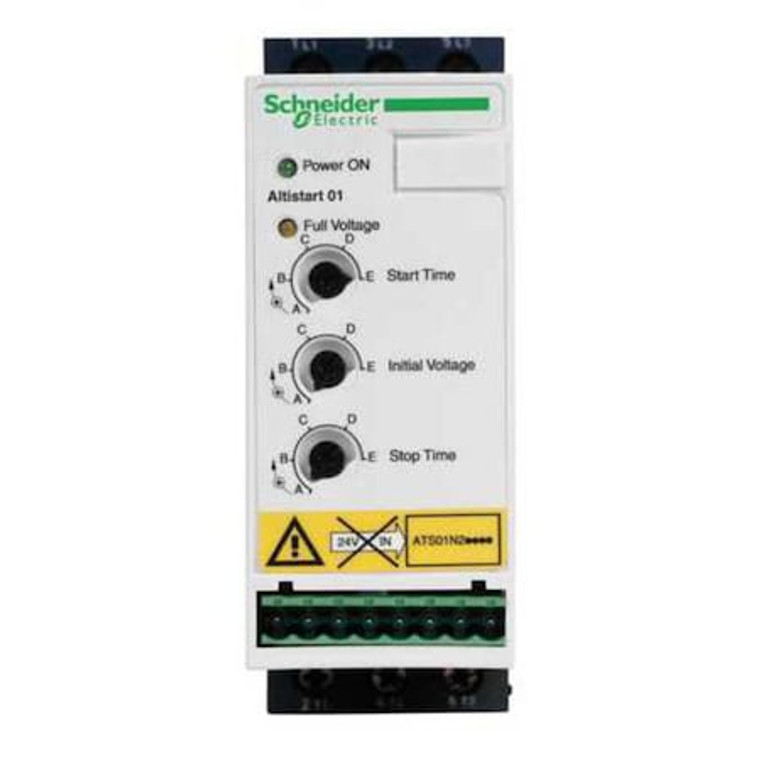

Soft Start, 200-240VAC, 6A, 1.5HP - ATS01N206LU

Soft Start, 200-240VAC, 6A, 1.5HP - ATS01N206LU

Schneider Electric
SKU:
ATS01N206LU
|
UPC:
785901703488
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Soft Start, Input Voltage 200 to 240V AC, Output Current 6 A, Output Voltage 200 to 240V AC, 1 hp @ 3 Phase, 200 to 240V AC, 1.5 hp @ 3 Phase, 200 to 240V AC, Control Voltage 110 to 240V AC, IP00, NEMA 1
Additional Information
Country of Origin:
Germany
Inputs/Outputs:
2 or 3 Wire Control, Fault Relay (Also for Isolation Contactor Control), up to speed" Logic Output"
Enclosure Rating:
IP00, NEMA 1
Control Voltage:
110 to 240V AC
Height:
4.88 in
Protects:
3 Phase Motors Rated for 6 to 32A at 230,400 & 460 Volts
Phase:
Three
HP @ 3 Phase - 240V:
1 to 1 1/2
Standards:
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
Starting Torque:
30% to 80%
Width:
1.77 in
Output Current:
6 A
Item:
Soft Start
Start Type:
Voltage Ramp Start
HP @ 3 Phase - 208V:
1 hp
Ramp Time:
1 to 10 sec.
With Bypass / No Bypass:
With Bypass
Application:
Asynchronous Motors
Includes:
LED display two
Stop Time:
1 to 10 sec
IP Rating:
00
Input Voltage:
200 to 240V AC
Depth:
4.45 in
Display:
None
Output Voltage:
200 to 240V AC
HP @ 3 Phase - 230V:
1 to 1-1/2
Overall Height:
4.88 in
Frequency:
50/60 Hz
Overall Width:
1.77 in
Output Power:
1 hp @ 3 Phase, 200 to 240V AC, 1.5 hp @ 3 Phase, 200 to 240V AC
Overall Depth:
5.16 in
HP:
1 to 1.5 @ 230VAC
Package Quantity:
1
