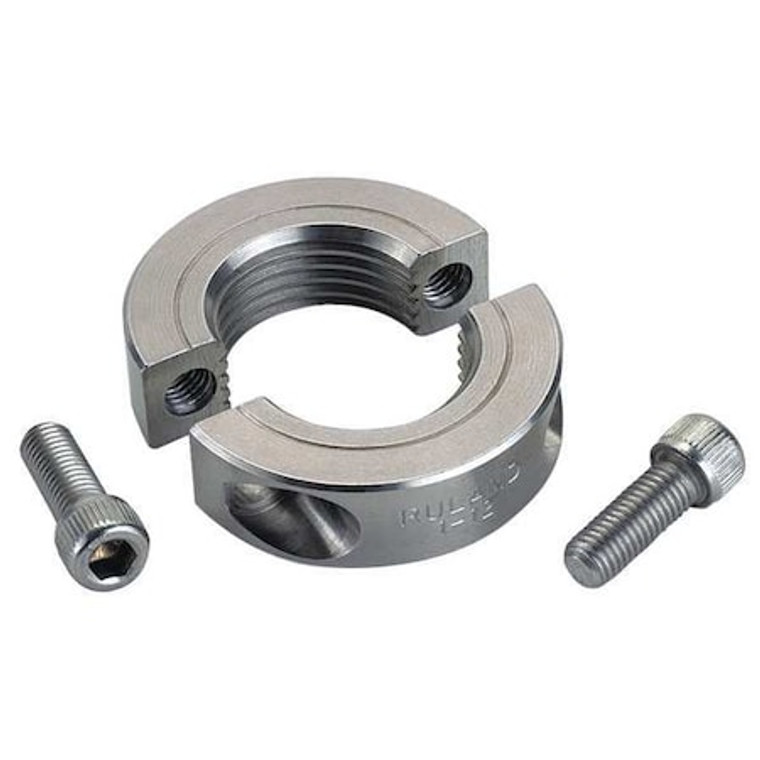

Shaft Collar, Threaded, 2Pc, 1-1/4-7 In, SS - TSP-20-7-SS

Shaft Collar, Threaded, 2Pc, 1-1/4-7 In, SS - TSP-20-7-SS

Ruland
SKU:
TSP-20-7-SS
|
UPC:
634529029497
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Inch, Bore Type Threaded, Bore Diameter 1 1/4 in, Bore Thread Size 1 1/4 In.-7, Collar Outside Diameter 2 1/16 in, Inside Height to Flat Not Applicable, Clearance Diameter 2.3 in, Collar Width 1/2 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Right Hand Thread, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
1-1/4-7"
Material:
303 Stainless Steel
Number of Pieces:
2
Collar Style:
Clamp, Threaded
Outside Dia.:
2 1/16 in
Dimension Type:
Inch
Width:
1/2 in
Screw Size:
1/4-28"
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
2.253 in
Screw Material:
Stainless Steel
Material - Collars:
303 Stainless Steel
Item:
Shaft Collar
Bore Type - Collars:
Threaded Bore
Shaft Locking Type - Couplings:
2 Piece Clamp
System of Measurement:
Inch
Item - Shaft Collars:
Shaft Collar
Standards:
ANSI, Conflict Minerals Compliant, ISO 9001
Width Tolerance:
+0.003/-0.010 in
Bore Tolerance:
Not Applicable
Screw Seating Torque:
110 lb-in
Distance Across Flats:
Not Applicable
Handle Material:
Not Applicable
Collar Material Finish:
Bright
Handle Color:
Not Applicable
Flat to Bore:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Handle Material Finish:
Not Applicable
Shaft Locking Type:
Clamp On
Keyway Width:
Not Applicable
Lever Length:
Not Applicable
Component Mount Type:
Not Applicable
Screw Location from Center:
0.83 in
Lever Height:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Bore Diameter:
1 1/4 in
Collar Outside Diameter:
2 1/16 in
Collar Material Grade:
303
Collar Construction:
2-Piece
Collar Width:
1/2 in
Center to Lever Top:
Not Applicable
Bore Thread Size:
1 1/4-7"
Resistance Properties:
Corrosion Resistant
Collar Material:
Stainless Steel
Maximum Operating Temperature:
350 Degrees F
For Shaft Diameter:
1 1/4 in
Screw Material Grade:
304
Inside Height to Flat:
Not Applicable
Clearance Diameter:
2.3 in
Shaft Tolerance:
+0.0000/-0.0005 in
Bore Type:
Threaded
Keyway Depth:
Not Applicable
Screw Thread Size:
1/4-28"
Thread Direction:
Right Hand Thread
Screw Material Finish:
Bright
Bore Width:
Not Applicable
Minimum Operating Temperature:
-40 Degrees F
Lever Part Number:
Not Applicable
Package Quantity:
1
