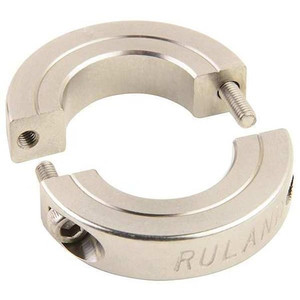

Shaft Collar, SS, 2 pcs, 25mm Bore Dia. - ENSP60-25MM-SS

Shaft Collar, SS, 2 pcs, 25mm Bore Dia. - ENSP60-25MM-SS

Ruland
SKU:
ENSP60-25MM-SS
|
UPC:
634529139844
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 25 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Clearance Diameter 63.8 mm, Collar Width 12 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
25 mm
Material:
303 Stainless Steel
Number of Pieces:
2
Collar Style:
Clamp
Outside Dia.:
60 mm
Dimension Type:
Metric
Width:
12 mm
Screw Size:
M5 x 14
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
63.7 mm
Screw Material:
Stainless Steel
Item:
Shaft Collar
Shaft Locking Type - Couplings:
2 Piece Clamp
Bore Type - Collars:
Plain Bore
Material - Collars:
303 Stainless Steel
System of Measurement:
Metric
Item - Shaft Collars:
Shaft Collar
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Distance Across Flats:
Not Applicable
Width Tolerance:
+0.076/-0.254 mm
Bore Tolerance:
+0.050/+0.012 mm
Screw Seating Torque:
5.4 N-m
Center to Lever Top:
Not Applicable
Collar Material Finish:
Bright
Handle Color:
Not Applicable
Shaft Locking Type:
Clamp On
Keyway Width:
Not Applicable
Included Screws:
(2) Hex Socket Cap Screw
Collar Construction:
2-Piece
Screw Material Grade:
304
Collar Material Grade:
303
Screw Thread Size:
M5x14
Collar Outside Diameter:
60 mm
Clearance Diameter:
63.8 mm
Collar Material:
Stainless Steel
For Shaft Diameter:
25 mm
Screw Material Finish:
Bright
Lever Part Number:
Not Applicable
Minimum Operating Temperature:
-40 Degrees C
Bore Type:
Round
Shaft Tolerance:
+0.000/-0.013 mm
Lever Length:
Not Applicable
Bore Thread Size:
Not Applicable
Inside Height to Flat:
Not Applicable
Mount Hole Thread Size:
Not Applicable
Bore Width:
Not Applicable
Maximum Operating Temperature:
176 Degrees C
Bore Diameter:
25 mm
Flat to Bore:
Not Applicable
Lever Height:
Not Applicable
Collar Width:
12 mm
Keyway Depth:
Not Applicable
Thread Direction:
Not Applicable
Screw Location from Center:
26 mm
Handle Material Finish:
Not Applicable
Component Mount Type:
Not Applicable
Resistance Properties:
Corrosion Resistant
Handle Material:
Not Applicable
Package Quantity:
1
