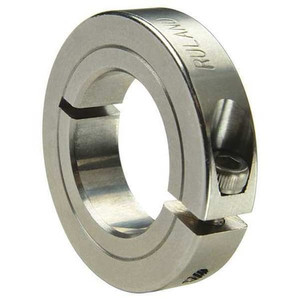

Shaft Collar, SS, 1 pc, 1in Bore Dia. - ENCL60-16-SS

Shaft Collar, SS, 1 pc, 1in Bore Dia. - ENCL60-16-SS

Ruland
SKU:
ENCL60-16-SS
|
UPC:
634529138625
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 in, Bore Thread Size Not Applicable, Collar Outside Diameter 60 mm, Inside Height to Flat Not Applicable, Clearance Diameter 63.8 mm, Collar Width 12 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel
Additional Information
Country of Origin:
United States
Bore Dia.:
1 in
Material:
303 Stainless Steel
Number of Pieces:
1
Collar Style:
Clamp
Outside Dia.:
2 23/64 in
Dimension Type:
Inch
Width:
15/32 in
Screw Size:
M5 x 14
Operating Temp. Range:
-40 Degrees to 350 Degrees F
Clearance Dia.:
2.51 in
Screw Material:
Stainless Steel
Item - Shaft Collars:
Shaft Collar
System of Measurement:
Metric with Inch Bore
Bore Type - Collars:
Plain Bore
Material - Collars:
303 Stainless Steel
Shaft Locking Type - Couplings:
1 Piece Clamp
Item:
Shaft Collar
Standards:
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001
Bore Tolerance:
+0.002/+0.0005 in
Width Tolerance:
+0.003/-0.010 in
Distance Across Flats:
Not Applicable
Screw Seating Torque:
5.4 N-m
Resistance Properties:
Corrosion Resistant
Collar Material Finish:
Bright
Handle Material:
Not Applicable
Screw Thread Size:
M5x14
Collar Outside Diameter:
60 mm
Screw Location from Center:
1.02 in
For Shaft Diameter:
1 in
Lever Length:
Not Applicable
Shaft Locking Type:
Clamp On
Thread Direction:
Not Applicable
Bore Type:
Round
Bore Diameter:
1 in
Inside Height to Flat:
Not Applicable
Screw Material Finish:
Bright
Shaft Tolerance:
+0.0000/-0.0005 in
Clearance Diameter:
63.8 mm
Mount Hole Thread Size:
Not Applicable
Collar Material:
Stainless Steel
Collar Material Grade:
303
Keyway Width:
Not Applicable
Bore Width:
Not Applicable
Lever Height:
Not Applicable
Included Screws:
(1) Hex Socket Cap Screw
Collar Construction:
1-Piece
Lever Part Number:
Not Applicable
Keyway Depth:
Not Applicable
Minimum Operating Temperature:
-40 Degrees C
Center to Lever Top:
Not Applicable
Bore Thread Size:
Not Applicable
Collar Width:
12 mm
Handle Color:
Not Applicable
Flat to Bore:
Not Applicable
Component Mount Type:
Not Applicable
Screw Material Grade:
304
Maximum Operating Temperature:
176 Degrees C
Handle Material Finish:
Not Applicable
Package Quantity:
1
